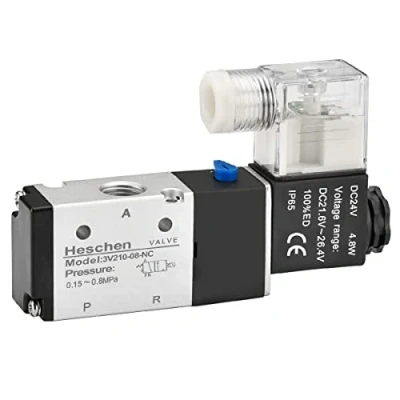

Heschen Electrical Pneumatic Solenoid Valve 3V210 08 24VDC 4.8W PT1/4 3/2 Way CE

Prices from
9.99

Sponsored links

Description

Amazon 【3/2 WAY NORMALLY CLOSED & HIGH FLOW】Model 3V210-08-NC pneumatic solenoid valve operates on DC 24V (4.8W, 200mA, 100% ED) with PT 1/4" (BSPT) tapered ports. Features an enlarged 16mm² effective area (Cv=0.89) for 14% higher air flow and a rapid 0.05s response time at up to 5 cycles per second without jamming. 【ALUMINIUM BODY & IP65 PROTECTION】Crafted from a precision-machined aluminium alloy body with smooth internal air channels that run reliably without extra lubrication. Equipped with a Class B heat-resistant copper coil and IP65 dust-tight, water-resistant housing (DIN 40050) for demanding workshops or sheltered outdoor setups. 【0.15-0.8 MPA INTERNAL PILOT DESIGN】Internally piloted 3-port, 2-position (P inlet, A outlet, R exhaust) directional control valve requires a minimum starting air pressure of 0.15 MPa (1.5 bar) via the 'P' port to actuate the main spool cleanly, maintaining stable air path commutation across 0.15–0.8 MPa. 【EASY WIRING & MANUAL OVERRIDE】Installs directly into existing pipelines or manifolds with tight-sealing tapered threads—no complex specialist tools required. The transparent DIN junction box includes an LED status indicator, flyback diode protection, and clear +/-/earth screw terminals (observe polarity), plus a blue push-button manual override for power-off testing. 【VERSATILE INDUSTRIAL COMPATIBILITY】Compact 108 x 22 x 66.5mm body with pre-drilled mounting holes fits control cabinets and pneumatic pump stations effortlessly. Ideal for pneumatic cylinder control, high-speed sorting lines, CNC machining, packaging equipment, process valves, and automotive lifts.

Compare webshops (1)

Sponsored links · Some shops pay us a fee

Sort by:

£ 9.99

Description (1)

【3/2 WAY NORMALLY CLOSED & HIGH FLOW】Model 3V210-08-NC pneumatic solenoid valve operates on DC 24V (4.8W, 200mA, 100% ED) with PT 1/4" (BSPT) tapered ports. Features an enlarged 16mm² effective area (Cv=0.89) for 14% higher air flow and a rapid 0.05s response time at up to 5 cycles per second without jamming. 【ALUMINIUM BODY & IP65 PROTECTION】Crafted from a precision-machined aluminium alloy body with smooth internal air channels that run reliably without extra lubrication. Equipped with a Class B heat-resistant copper coil and IP65 dust-tight, water-resistant housing (DIN 40050) for demanding workshops or sheltered outdoor setups. 【0.15-0.8 MPA INTERNAL PILOT DESIGN】Internally piloted 3-port, 2-position (P inlet, A outlet, R exhaust) directional control valve requires a minimum starting air pressure of 0.15 MPa (1.5 bar) via the 'P' port to actuate the main spool cleanly, maintaining stable air path commutation across 0.15–0.8 MPa. 【EASY WIRING & MANUAL OVERRIDE】Installs directly into existing pipelines or manifolds with tight-sealing tapered threads—no complex specialist tools required. The transparent DIN junction box includes an LED status indicator, flyback diode protection, and clear +/-/earth screw terminals (observe polarity), plus a blue push-button manual override for power-off testing. 【VERSATILE INDUSTRIAL COMPATIBILITY】Compact 108 x 22 x 66.5mm body with pre-drilled mounting holes fits control cabinets and pneumatic pump stations effortlessly. Ideal for pneumatic cylinder control, high-speed sorting lines, CNC machining, packaging equipment, process valves, and automotive lifts.


Product specifications

Brand Heschen
EAN
  • 0670534171493
Color
  • Silver / black
