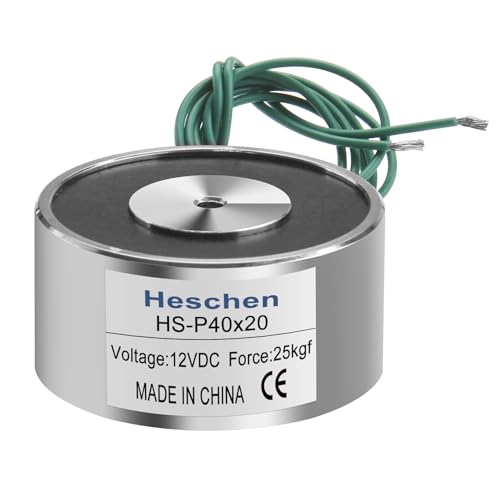

Heschen Electromagnet Magnet Solenoid P40/20, OD: 40mm, DC 12V, 25Kg/55lb

DC 12V & Standard Wiring: Model HS-P40x20. Operates on DC 12V. Equipped with standard fine-gauge lead wires specifically designed to match the low-current draw of the internal coil 40x20mm Size & M5 Thread: Measures 40mm in diameter and 20mm in height. Features a rear M5 female thread for secure mounting onto automated robotic arms and lifting fixtures Energize-to-Hold Principle: Generates a strong magnetic field when energized to hold objects securely, and releases instantly when power is disconnected (zero residual magnetism) Strict 25Kg Force Conditions: 25Kg (55lb) is the theoretical maximum. To achieve this, the target MUST be flat low-carbon steel, >6mm thick, larger than 40mm, with ZERO air gap (no paint/rust) Thermal Operating Cautions: Electromagnets naturally generate heat. Continuous energization is allowed under rated load; however, long-term energization without a load will cause thermal damage
