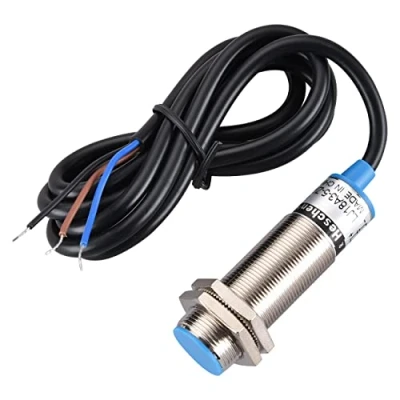

Heschen M18 Inductive Proximity Sensor Switch Shield Type LJ18A3 5 Z/BY Detector 5mm 10 30VDC 200mA PNP Normally Open(NO) 3 Wire

[5MM SHIELDED SENSING] M18 threaded cylindrical housing with a standard 5mm (+/- 10%) detecting distance. As a flush-mountable model, it can be safely embedded directly into metal panels without side interference [PNP NORMALLY OPEN] Safely operates on a 10-30VDC working voltage. Standard 3-wire PNP (Sourcing) logic: the black wire starts sourcing current from the positive supply only when triggered [HIGH-SPEED & EASY WIRING] Standard color coding is Brown (+), Blue (-), and Black (Output). It supports a maximum response frequency of up to 0.5 kHz under standard conditions, suitable for CNC indexing [BUILT FOR FACTORIES] Features a rugged nickel-plated brass housing with an ABS sensing face. IP65-rated protection ensures reliable defense against industrial dust ingress and low-pressure water jets [UNIVERSAL REPLACEMENT] Designed as a direct drop-in replacement for standard machine limit switches. Note: Adhere to a maximum safe tightening torque of 25Nm for M18 threads to prevent housing damage
