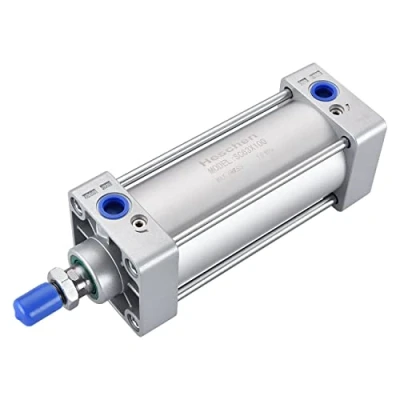

Heschen Pneumatic Standard Cylinder, SC 63 100, PT3/8'' Port, 63mm Bore, 100mm Stroke, Double Acting

Complete Specs: Model SC 63-100 standard tie-rod pneumatic cylinder; engineered with a large 63mm bore and a 100mm functional stroke length; features heavy-duty female PT 3/8" intake ports and an M16x1.5 male piston rod thread. Responsive Double Acting Loop: Utilizes a high-torque two-way pressure driving mechanism for both push and pull movements; requires standard 5/2 or 5/3 way pneumatic control valves to route your compressed air network switches. Certified Pressure Threshold: Safely supports a standard maximum operating pressure up to 10 kgf/cm²(1.0 MPa / 145 PSI); outfitted with premium wear-resistant piston rings to ensure constant airtight distribution loops. einforced Aluminum Chamber: Crafted with an extra-durable aluminum alloy round barrel reinforced by quad steel tie-rods; features a substantial net weight of 1624g to withstand high structural impact loads. Heavy Machinery Integration: High-thrust linear actuator switch component optimized for factory stamping press links, heavy-duty material packaging sorters, automated garage doors, and industrial workshop assembly jigs., Manufacturer: CHLED Pneumatic
