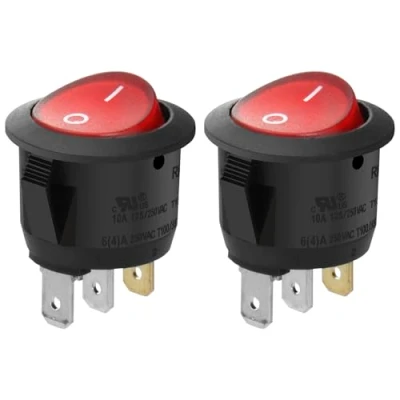

Heschen Round Rocker Switch ON OFF SPST 3 Terminals Red light 10A 250VAC 2Pack

【Standard 20mm Cutout & 3-Pin SPST】 Designed for 20.1mm (0.79") panel cutouts with a compact 23mm outer diameter. Features Single Pole Single Throw (SPST) ON-OFF 2-position operation with 3-pin brass quick-connect terminals (4.8mm x 0.8mm). Please verify your panel hole size before ordering. 【220V AC Illuminated Indicator - NOT for 12V】 Built-in soft red neon indicator illuminates when switched ON. IMPORTANT: The lamp operating voltage is 220V–250V AC. If used in 12V/24V low-voltage DC applications (e.g., automotive/marine), the switch will operate normally, but the indicator light WILL NOT turn on. 【Easy 3-Pin Wiring Configuration】 Pin 1: Power input (Line In); Pin 2: Power output to device (Load); Pin 3: Connected to Neutral wire for the indicator lamp circuit. Incorrect wiring will prevent the switch from powering your load or lighting up. Please refer to our wiring schematic diagram before installation. 【Industrial Electrical Rating】 Rated at 10A 125VAC / 6(4)A 250VAC. Precision-engineered with contact resistance ≤35mΩ and dielectric strength of 1500V AC/min. Provides a mechanical & electrical life of ≥10,000 switching cycles for reliable, long-lasting performance. 【Wide Application & Package Contents】 Ideal for household appliances, water dispensers, treadmills, coffee makers, and industrial machine panels operating on mains AC voltage. Package includes 2 x Red Illuminated Round Rocker Switches (RK2-13 model)
