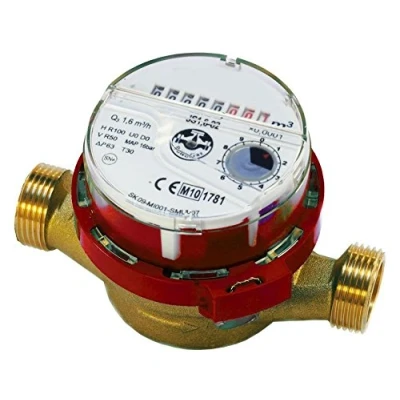

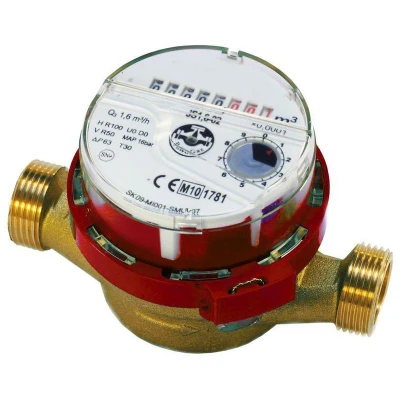

High Quality Hot Warm Water Flow Meter 3/4" inch (1") BSP 4m3/h Red Colour

ManoMano

General description For measuring the flow and volume of warm water with a temperature up to 90°C in closed-circuit systems, this high-quality hot warm water flow meter is designed to handle a maximum working pressure of 16 bar (PN16). It is suitable for installation in horizontal pipelines with the counter directed upwards and in vertical or horizontal hoses with the counter directed sidewards. Technical specifications Thread size: 3/4" male BSP (with option to switch to 1" male BSP) Maximum flow rate: 4 m³/h Temperature range: up to 90°C Maximum working pressure: 16 bar (PN16) Counter protection: IP65 Counter mechanism: Blockade against multiple rotations (more than 360°) Double-sided rotor bearing Compatibility and accessories Pre-equipped for installation of radio module for Wireless M-Bus communication Impulse module and M-Bus module compatible Outlet port suitable for optional installation of a return valve Other information Resistant to strong external magnetic fields Hermetic

Amazon

3/4" male thread BSP European Thread; possibility of removing adaptor to 1" male thread; Maximum flow rate: 4m3/h; Resistant to strong external magnetic field; Readings reliability – fulfils the newest metrological requirements of MID; Easy reading of the water meter counter; Protection against mechanical tampering; Hermetic counter (with increased tightness) resistant to steaming., Weight: 1.984160358 Pounds, Manufacturer: Pawogaz
