Holzmann Maschinen Inverter Welding System TISA 160 H11020002 Operating Voltage 230 V / 50 Hz Current d

ManoMano

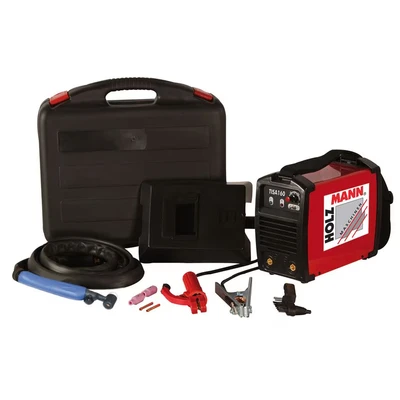

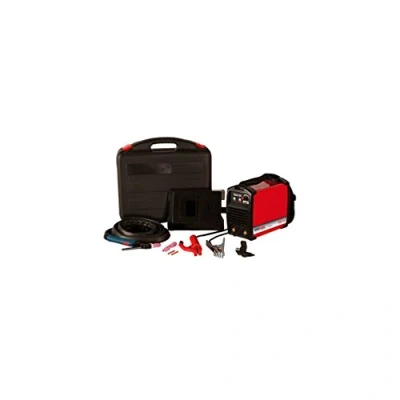

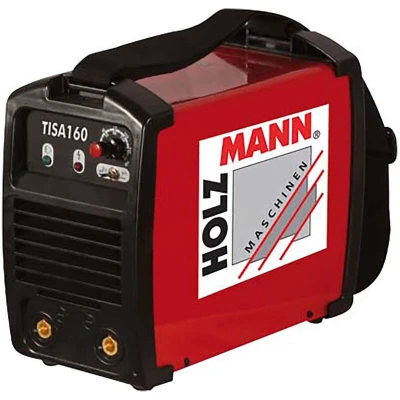

General description Compact and portable, the Holzmann TISA160 inverter electrode welding machine is designed for both MMA and TIG lift welding. It features advanced inverter technology, making it easy to use for various welding applications. The machine comes equipped with a high-quality welding torch, welding cable with an electrode holder, and an earth clamp, ensuring a reliable and efficient welding experience. Technical specifications Installation dimensions: 290 x 130 x 240 mm Input voltage: 1 x 230 V 50 Hz Power consumption: 4.7 kVA Welding current range: 10-160 A Duty cycle: 35% Open circuit voltage: 60-80 V Welding cable length: 3 m Ground clamp rating: 300 A Electrode holder rating: 200 A Gas tube length: 2 m Packaging dimensions: 230 mm (width) x 580 mm (length) x 480 mm (height) Net weight: 8 kg Gross weight: 13 kg Other information Includes pressure regulator, welding station equipment, TIG welding station equipment, welding shield, chipping hammer, wire brush, and

Amazon

Input Voltage 1 x 230 V 50 Hz Power Consumption Max 4.7 kVA range voltage converter 10 – 160 A cycle of 35% tension in airtight 60 – 80 V welding cable – 3 m length gas 2 m Dimensions of the CEE 300 A Porta electrode 200 A cable machine 290 x 130 x 240 mm Weight: 6 kg. & # x2022; Compact design & # x2022; Easy to use & # x2022; Portable & # x2022; Technology invest. & # x2022; High quality the included Torch suitable & # x2022; Cable Plug Soldering, Porta electrode with belt clip and grounding., Weight: 13.23 Pounds, Manufacturer: HOLZMANN-MASCHINEN
