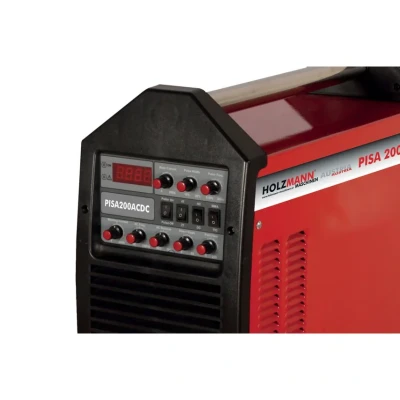

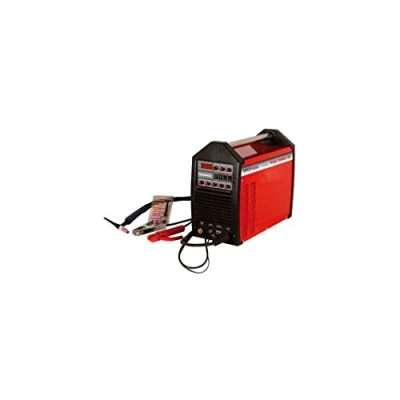

Holzmann PISA200ACDC 200A Acdc Pulse TIG Welder 230V

ManoMano

Compact design Portable With foot pedal (FT-1 optional) TIG AC/DC suitable for mild steel, stainless steel and aluminum 2T/4T control function Digital display and adjustable current presets Overload protection Scope of delivery: Pressure regulator, welding station equipment, TIG welding station equipment Technical data Installation dimensions in mm: 430 x 200 x 290 Input voltage: 1 x 230 V 50 Hz Power consumption in kVA: 6 Welding current range in A: 5-200 Duty cycle in %: 60 Open circuit voltage in V: 60-80 Welding cable length in m: 3 Ground clamp in A: 300 Electrode holder in A: 300 Gas hose length in m: 2 Gas pre-flow time in s: 0-10 Gas post-flow time in s: 1.25 Current fall time in s: 0-10 Packaging width in mm: 390 Packaging length in mm: 640 Packaging height in mm: 530 Net weight in kg: 27 Gross weight in kg: 32,800

Zoro Tools

Holzmann PISA200ACDC portable pulse TIG welder used to weld thin sections of stainless steel, non-ferrous metals such as aluminum, magnesium and copper alloys. Features include 5-200 A welding current range, low start up current, and high quality torch. The Pulse feature enables improved control and setting up the pulse will moderate the heat as you weld, and ensure you have enough heat present at the joint without over layering the weld with filler metal or burning through the metal. Includes pressure relief, welding place equipment, WIG-welding place equipment.
