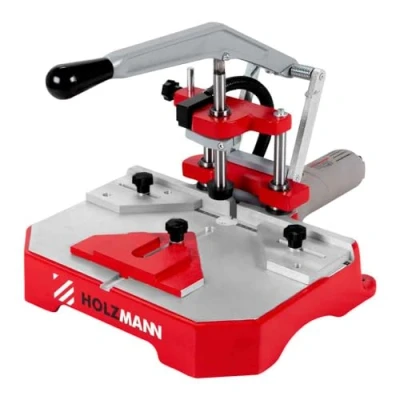

Holzmann Wedge Milling Machine KNF1

The HOLZMANN KNF1_230V dovetail jointing machine with a single milling spindle is ideal for producing a dovetail joint per run. Picture frames, window frames and many other frame joints can be produced quickly and easily. Simply mill, insert the appropriate dovetail joint and the two machined parts are joined (no glue required). Manual workpiece clamping One milling spindle Adjustable milling stops for positioning the workpiece Equipment: W-2 shape cutter, D.6 and D.8 mm collet, cutter adjustment gauge Technical data Motor power S1 in W: 600 Voltage: 230 V / 50 Hz Protection class: II Table dimensions in mm: 380 x 220 Installation dimensions in mm: 400 x 550 x 370 Max. workpiece thickness in mm: 95 Sound pressure level in dB(A): 88 Max. Milling capacity in mm: 55 Milling spindle speed in rpm: 12,000 - 27,000 Packaging width in mm: 440 Packaging length in mm: 600 Packaging height in mm: 420 Net weight in kg: 11 Gross weight in kg: 14
