Horizontal Plate Lifting Clamp 1 Ton (0 30MM Grip Sheet Non Slip 1000KG)
Featured
|
£ 35.00 |
To Shop
|
|
£ 35.00 |
To Shop
|
Description
ManoMano

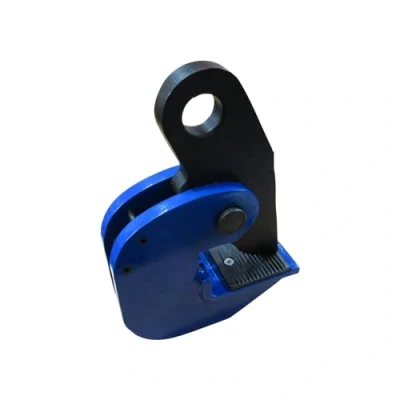

General description These Horizontal Plate Lifting Clamps are designed for lifting sheet materials in a horizontal position. They provide a secure grip, ensuring that the clamps do not slip when lifting force is applied or during lowering. Technical specifications Lifting Capacity: 1 Ton (when used as a pair) Jaw Opening: 0 - 30MM Dimensions: A (min): 180MM A (max): 200MM B: 165MM C: 132MM F: 38.9MM G: 29.5MM H: 50.1MM I: 16.1MM Weight: 3.44 kg Other information Minimum loading weight is 20% of SWL Minimum thickness is 20% of the jaw opening plus the minimum opening Test certificate included (sent via email) Product Code: SFHLC1
Description
(2)
General description These Horizontal Plate Lifting Clamps are designed for lifting sheet materials in a horizontal position. They provide a secure grip, ensuring that the clamps do not slip when lifting force is applied or during lowering. Technical specifications Lifting Capacity: 1 Ton (when used as a pair) Jaw Opening: 0 - 30MM Dimensions: A (min): 180MM A (max): 200MM B: 165MM C: 132MM F: 38.9MM G: 29.5MM H: 50.1MM I: 16.1MM Weight: 3.44 kg Other information Minimum loading weight is 20% of SWL Minimum thickness is 20% of the jaw opening plus the minimum opening Test certificate included (sent via email) Product Code: SFHLC1
AmazonLifting Capacity - 1 Ton (When used as a pair) Jaw Opening - 0 - 30MM Conforms To BS EN 13155 A (min) - 180MM A (max) - 200MM B - 165MM C - 132MM F - 38.9MM G - 29.5MM H - 50.1MM I - 16.1MM Designed for lifting sheet materials horizontally, Manufacturer: SecureFix Direct
