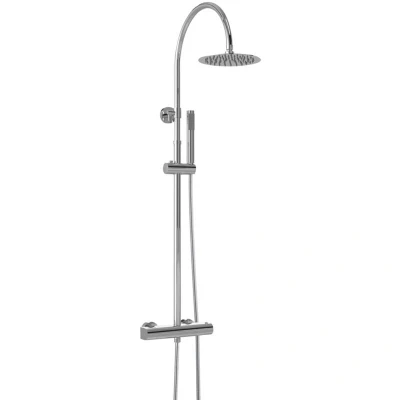

Hudson Reed A3530 Round Brass Thermostatic Bar Valve and Shower Kit with Single Function Handset, 1336mm, Chrome

The Hudson Reed Luxury Round Thermostatic Bar Mixer Shower offers a versatile, safe showering experience with precise temperature control. It features a thermostatically controlled round shower head and round handset, maintaining accuracy within +/- 2 degrees even as water pressure fluctuates. The system includes a bar valve and shower kit, designed for multi-option showering and compatibility with high-pressure systems, combi-boilers, gravity-fed setups, unvented mains pressure systems, and shower pumps. Constructed from brass with a chrome finish, it combines durability with a timeless look suitable for modern shower enclosures. The setup supports two outlets and a modular height range, enabling flexible configuration for various bathroom layouts.“

Features

• Thermostatic control ±2°C stability
• Round shower head and handset
• Two outlets for versatile showering
• Brass construction with chrome finish
• Ceramic disc technology for smooth valve operation
• Suitable for high-pressure, combi-boilers, gravity-fed, unvented systems

Technical specifications

• Shower Type: Thermostatic Valve
• Outlets: 2
• Height: 821–1336 mm
• Shower Head Width: 200 mm
• Shower Head Depth: 200 mm
• Min Pressure: 0.5 Bar
• Inlet Connection Size: 1/2 BSP
• Material: Brass
• Colour: Chrome
• Flow Rate at 0.1 Bar: 2.5 l/min
• Flow Rate at 0.5 Bar: 7.5 l/min
• Flow Rate at 1.0 Bar: 11 l/min
• Flow Rate at 2.0 Bar: 16.5 l/min
• Flow Rate at 3.0 Bar: 21 l/min
• WRAS Approved: Yes

In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding.
