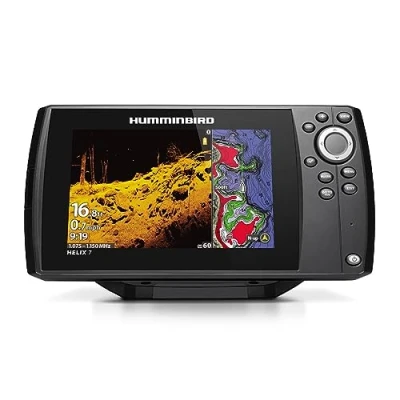

Humminbird HELIX 7 CHIRP MEGA DI GPS G4 Fish finder

Fishdeal

Humminbird HELIX 7 CHIRP MEGA DI GPS G4 - Series: HELIX - Display Size: Diagonal 7 Inch - Display Pixel Matrix: 1024H x 600V - Sonar Standard: Dual Spectrum CHIRP, MEGA Down Imaging - Sonar Coverage: 20°, 42°, 60° & (2) 86° @ -10dB - Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP - CHIRP Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) - Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz - Depth-Sonar: 1,200ft/365m (standard transducer) and 3,500ft/1067m (optional 50 kHz) - CHIRP – Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz) - Depth-Down Imaging: 400ft / 122m (455 kHz) and 75 ft / 23m (MEGA) - Range-Side Imaging (Side-To-Side): 800ft / 244m (455 kHz) - Interface: Keypad Control - Features: Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, MEGA Imaging - Power Draw:800mA - Power Input: 10.8-20 VDC - Power Output Peak-to-Peak: 4000 Watts - Power Output RMS: 500 Watts - Mount-Standard: Gimbal - Mount-Standard Size: 10.54" W x 5.8" H x 3.68" D - Mount-Optional Size: 10.54" W x 5.44" H x 1.13" D - Transducer Mount Location: Transom - GPS Chartplotting: Included - GPS Trackplotting: Included The HELIX 7 CHIRP MEGA DI GPS G4 fishfinder features MEGA CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and built-in Humminbird Basemap. The upgraded high-definition 7-inch screen lets you see the world around your boat in detail! Operating this fishfinder is very easy. You have instant access to preloaded views from the simple menu system, which you control with the soft-key buttons. CHIRP stands for “Compressed High Intensity Radar Pulse.” By covering a wide range of frequencies, CHIRP produces more accurate, more detailed results of fish, structure and bottom. The Dual Spectrum CHIRP 2D sonar system gives you two ways to search through the Low-Q CHIRP transducer; Wide Mode for maximum coverage and Narrow Mode to focus on the smallest detail. MEGA CHIRP Down Imaging: DI filters out noise and clutter for a super clear image under the boat. CHIRP Digital Sonar processing from Down Imaging Sonar means you see lots of detail to make finding the fish easier and you can observe structures under the boat in great detail. Compared to the normal DI, the MEGA has much more power (frequency above 1000 kHz) for an even brighter image with 3X more detail. The HELIX 7 CHIRP MEGA DI GPS G4 is equipped with an internal GPS and Humminbird baseboard. This gives you an adequate view of the underwater terrain immediately by default and allows you to fish and navigate with confidence. The system is compatible with Humminbird’s LakeMaster® and CoastMaster™ products, as well as Navionics® maps. A great feature of this model is AutoChart Live. This lets you create real-time maps of your spots as you sail. It comes with standard eight hours of built-in recording time, which you can expand with AutoChart Zero Line SD cards for virtually endless AutoChart Live chart capacity. This beautiful fishfinder comes complete with screen, transom-mount transducer, power cable, mounting bracket and mounting hardware and has a 1-Year Limited Warranty. A very high quality product, as you expect from Humminbird, with GPS and MEGA Down Imaging!

Amazon

Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware. 1-Year Limited Warranty
