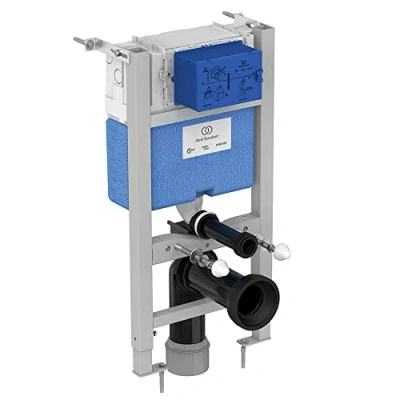

Ideal Standard ProSys Mechanical Wall Hung Toilet Frame and Cistern, 820mm Height, 150mm Depth, Front or top Flush Operation, R014067, Blue/Grey/White

The Ideal Standard ProSys 820mm WC frame is an innovative and highly functional solution designed for wall-mounted toilet pans. This versatile product is an excellent choice for both new constructions and renovation projects, suitable for installation in either dry wall or solid wall applications.

Design and Construction

Measuring 400mm in width, 820mm in height, and with a depth ranging from 150mm to 210mm, the ProSys WC frame boasts a robust steel frame that can support an impressive vertical load capacity of up to 400kg. This ensures a secure and stable installation, providing peace of mind for users. The frame is constructed from stain and corrosion-resistant materials, guaranteeing durability and longevity.

Innovative Features

One of the standout features of the ProSys WC frame is the integration of SmartValve technology in its mechanical cistern. This advanced inlet valve refills the cistern only after the flush is complete, significantly reducing water wastage. This innovative design can save users up to 63 litres of water per week, translating to a 12% reduction in water bills. The dual flush system is pre-set for a full flush of 6 litres and a half flush of 4 litres, promoting efficient water usage.

Easy Installation

The ProSys WC frame is designed for ease of installation. With adjustable height legs that feature brakes, one person can easily install the unit. The frame is fully maintainable through a service tunnel located at the front or top of the tank, ensuring that any necessary upkeep can be performed conveniently. The frame is compatible with ProSys flush plates, which are sold separately, allowing for customization to suit your bathroom design.

Versatility and Compatibility

This low-height WC frame is compatible with wall-hung toilet bowls projecting up to 66cm, adhering to connection dimensions as per EN 33:2011 standards. Not only does this make it an adaptable choice for various designs, but it also supports quick adjustments to accommodate different bathroom layouts.

Warranty and Approval

As a testament to its quality and reliability, the ProSys WC frame comes with a 10-year guarantee. Additionally, the product is WRAS approved, reassuring users of its compliance with water regulations.

In conclusion, the Ideal Standard ProSys 820mm WC frame emerges as a modern, efficient, and reliable solution for wall-mounted WC installations. With its emphasis on innovative water conservation, durability, and installation ease, it is an excellent addition to any contemporary bathroom setting.
