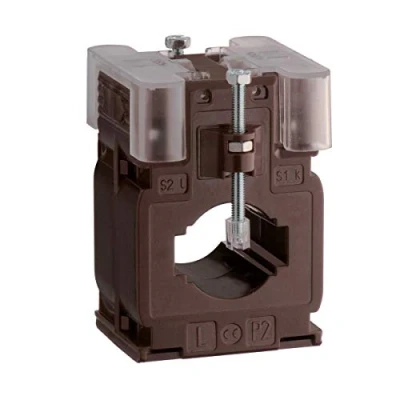

IME, Current Transformer for Low Voltage Grid Measurements Push Through Busbar, Primary Current: 400 A, Secondary 5 Cable Cross Section: 27 mm², Accuracy Class: Kl 0.5 1, TA32750C400
Prices from
28.84
Featured
|
£ 28.84 |
To Shop
|
|
£ 28.84 |
To Shop
|
| COMPARE ALL WEBSHOPS (2) | ||
Description
Amazon
Through current transformer for cables or rail feedthrough in the low-voltage network: primary current 400A, secondary current: 5A Accuracy classes: Kl. 0.5: 10VA | class 1: 12VA Cable / rail feed-through window size: rails: 32.5 x 10.5 mm + 25.5 x 15.5 mm | cable: diameter 27 mm² Converter connections: the screw terminals of the transducers are marked with 2 common designations: Primary circuit P1(K) - P2(L) secondary circuit s1(k) - s2(l) Transducer housing made of self-extinguishing polycarbonate, protection class (EN60529): IP40 & IP20 with sealable clamping base, profile type: 35 mm rail TH35-15 | dimensions: 80 x 56 x 71 mm (H x W x D)
Description
(1)
Through current transformer for cables or rail feedthrough in the low-voltage network: primary current 400A, secondary current: 5A Accuracy classes: Kl. 0.5: 10VA | class 1: 12VA Cable / rail feed-through window size: rails: 32.5 x 10.5 mm + 25.5 x 15.5 mm | cable: diameter 27 mm² Converter connections: the screw terminals of the transducers are marked with 2 common designations: Primary circuit P1(K) - P2(L) secondary circuit s1(k) - s2(l) Transducer housing made of self-extinguishing polycarbonate, protection class (EN60529): IP40 & IP20 with sealable clamping base, profile type: 35 mm rail TH35-15 | dimensions: 80 x 56 x 71 mm (H x W x D)
Product specifications
