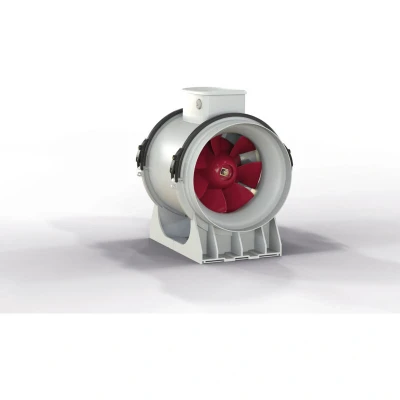

Inline fan Lineo 250 up to 1440 m3/h airflow

Dimensions and technical details 220-240 V ~ 50 Hz Housing colour: grey Housing colour: polyproylene Nominal size: 250 mm Speed levels: 1 Wattage: 145 W Current consumption: 0.63 A Revolutions per minute: 2730 Airflow rate: 1440 m³/h Sound pressure level Lp-3m: 43.5 dB(A) Total pressure Pmax: 364.8 Pa Max. temperature of transported air: +50°C Protection class: IPX5 Insulation class: II Weight: 5.3 kg Thermal overload protection Includes mounting bracket Mounting options: any position Fan unit can be removed for cleaning and maintenance Dimensions in mm A B C Ø D E F G H L Ø M N Lineo 250 300 378 322 243 190 329 200 70 170 5.5 174.5
