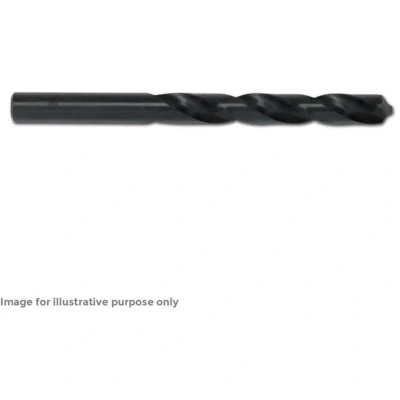

Irwin 10502592 HSS Pro Tin Coated Drill Bit

General description The Irwin HSS Pro TiN Coated Drill Bit is specifically designed for drilling metal and tougher alloys. It features a high-quality HSS steel body coated with 2.5 microns of Titanium Nitride (TiN), which enhances hardness, wear resistance, and reduces friction. The drill bit is engineered for increased performance, allowing for faster drilling speeds with less heat generation. Technical specifications Overall Length: 101mm Tip Diameter: 6.5mm Working Length: 63mm Material: High-quality HSS steel with TiN coating Coating Hardness: Approximately 80 HRC Compatibility and accessories Suitable for drilling metal, alloys, and other tough materials Compatible with standard drill chucks Installation Insert the drill bit into a compatible drill chuck Securely tighten the chuck to hold the bit in place Ensure the drill is set to the appropriate speed for metal drilling Usage Use with appropriate drilling speeds for metal Apply steady pressure during drilling Use cutting fluid

The Irwin HSS Pro TiN drill bits are primarily designed for drilling metal and harder tougher alloys. Compared to traditional HSS twist drill bits speed can be increased by 40 -60% and feed by 10 -20% without reducing the life time of the drill bit significantly. TiN is also a poor conductor of heat so the heat generated during the drilling process is diverted into the chips and coolant and less into the drill bit. These drills have a 135° split point grinding tip which ensures perfect centring and reduced drilling pressure. The drill bit body is manufactured from high quality HSS steel coated with 2.5µ Titanium Nitride (TiN) the TiN coating has a hardness of app. 80 HRC and is very resistant to wear. TiN has a low coefficient of friction this results in less power being consumed and less heat generated during the drilling.Irwin HSS Pro TiN Coated Drill Bit. Size 6.5 x 101mm.PTDIRW10502592
