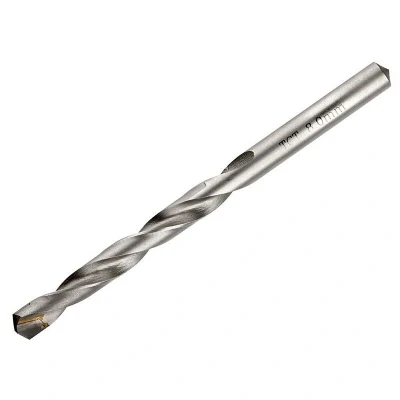

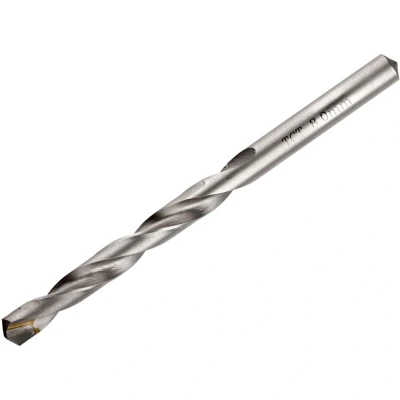

Irwin HSS TCT Tip Drill Bit 10.0mm OL:133mm WL:87mm

ManoMano

General description This is a 10.0 mm TCT (tungsten carbide tipped) drill bit designed for precise drilling in hard materials. It is suitable for use with stationary machines and is ideal for drilling steel, cast iron, bronze alloys, and manganese steel. The drill bit features a high-quality tungsten carbide tip that allows for efficient drilling in materials with hardness up to 50 Rockwell C. Its design includes four ground facets that reduce drilling pressure and ensure accurate centering, resulting in better performance and precision. The body is made of chrome-vanadium steel hardened to 56 Rockwell C, providing excellent wear resistance and durability during intensive use. Technical specifications Type: TCT (tungsten carbide tipped) drill bit Diameter: 10.0 mm Total length: 133 mm Working length: 87 mm Material: Chrome-vanadium steel with TiN coating TiN hardness: 50 Rockwell C Recommended coolant: Emulsion 3-6% Application: Drilling metals, cast iron, bronze alloys, and manganese

Power Tools Direct

The Irwin Metric TCT (Tungsten Carbide Tipped) Drill Bits offer precision drilling with stationary machines in hardened steel cast iron bronze alloys and manganese alloyed steel. The C2 Carbide Tip will drill hardened material up to a hardness of 50 Rockwell C and is four facetted ground for low drilling pressure and perfect centring. The body of the drill bit is made from Chrome Vanadium Steel hardened to 56 Rockwell C. A coolant should always be used when drilling with TCT twist drill bits. Irwin suggest the use of a 3- 6% emulsion. The coolant will extend the lifetime of the drill bit.Irwin HSS TCT tip drill bit. Specifications:Diameter: 10.0mm.Total length: 133mm.Working Length: 87mm.PTDIRW10502689

Amazon

Ideal for drilling hard and abrasive materials Designed for use in stationary drills Diamond-ground 4 face carbide tip Chrome Vanadium Steel, Weight: 0.01984160358 pounds, Manufacturer: Stanley Black & Decker
