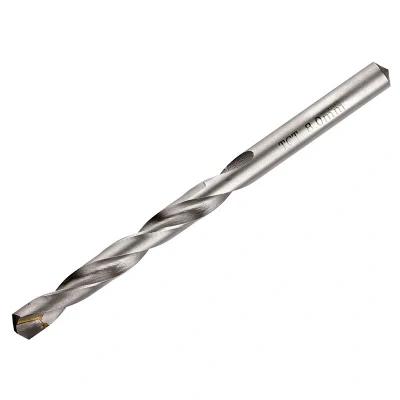

Irwin HSS TCT Tip Drill Bit 8.0mm OL117mm WL75mm IRW10502671

General description This high-quality IRWIN® HSS TCT tip drill bit is designed for precision drilling in hardened materials such as steel, cast iron, bronze alloys, and manganese steel. It features a four-faceted ground tip for accurate centering and low drilling pressure, ensuring optimal performance. Technical specifications Diameter: 8.0mm Total length: 117mm Working length: 75mm Material: Chrome vanadium steel with tungsten carbide tip Hardness: Drill body hardened to 56 Rockwell C; tip can drill materials up to 50 Rockwell C Compatibility and accessories Compatible with stationary drill machines Requires coolant (recommended: 3-6% emulsion) for optimal performance and longevity Installation Insert the drill bit into the drill chuck securely Ensure the drill is set to appropriate speed for hardened steel drilling Apply coolant during operation to prevent overheating and wear Usage Use for drilling hardened steel, cast iron, bronze alloys, and manganese steel Maintain steady

The Irwin Metric TCT (Tungsten Carbide Tipped) Drill Bits offer precision drilling with stationary machines in hardened steel cast iron bronze alloys and manganese alloyed steel. The C2 Carbide Tip will drill hardened material up to a hardness of 50 Rockwell C and is four facetted ground for low drilling pressure and perfect centring. The body of the drill bit is made from Chrome Vanadium Steel hardened to 56 Rockwell C. A coolant should always be used when drilling with TCT twist drill bits. Irwin suggest the use of a 3- 6% emulsion. The coolant will extend the lifetime of the drill bit.Irwin HSS TCT tip drill bit. Specifications:Diameter: 8.0mm.Total length: 177mm.Working Length: 75mm.PTDIRW10502671
