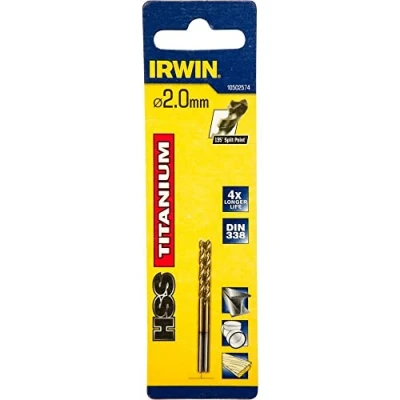

IRWIN IRW10502574 TiN Coated & Cobalt Jobber Drills

ManoMano

General description The Irwin HSS Pro TiN Coated Drill Bits are designed for precision drilling in metal and tougher alloys. With a size of 2.0mm in diameter and an overall length of 49mm, these drill bits feature a 135° split point grinding tip that ensures perfect centering and reduced drilling pressure. The high-quality HSS steel body is coated with 2.5µ Titanium Nitride (TiN), providing exceptional hardness and wear resistance. Technical specifications Overall Length: 49mm Tip Diameter: 2mm Working Length: 24mm TiN Coating Hardness: approx. 80 HRC Usage The Irwin HSS Pro TiN drill bits are ideal for drilling into metal and harder alloys. Compared to traditional HSS twist drill bits, these can increase drilling speed by 40-60% and feed by 10-20% without significantly reducing the lifespan of the drill bit. The TiN coating helps to divert heat generated during drilling into the chips and coolant, reducing heat buildup in the drill bit itself. Other information

Power Tools Direct

The Irwin HSS Pro TiN drill bits are primarily designed for drilling metal and harder tougher alloys. Compared to traditional HSS twist drill bits speed can be increased by 40 -60% and feed by 10 -20% without reducing the life time of the drill bit significantly. TiN is also a poor conductor of heat so the heat generated during the drilling process is diverted into the chips and coolant and less into the drill bit. These drills have a 135° split point grinding tip which ensures perfect centring and reduced drilling pressure. The drill bit body is manufactured from high quality HSS steel coated with 2.5µ Titanium Nitride (TiN) the TiN coating has a hardness of app. 80 HRC and is very resistant to wear. TiN has a low coefficient of friction this results in less power being consumed and less heat generated during the drilling.The Irwin IRW10502574 HSS Pro TiN Coated Drill Bit comes in the following:Size: 2.0 x 49mm.PTDIRW10502574

Amazon

HSS Pro TiN Coated Drill Bit (2) 2.0mm HSS Pro TiN Coated Drill Bit (2) 2.0mm HSS Pro TiN Coated Drill Bit (2) 2.0mm
