JG Speedfit 1st Floor Spread Plate JGUFHSP165

Plumbing Superstore

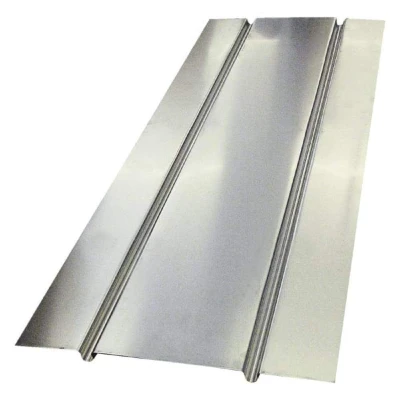

John Guest Speedfit Spreader Plates come in various sizes. The 390 x 1,000mm and 390 x 250mm plates are laid across traditional joists and secured with a hand stapler. The 165 x 1,000mm plates are used for composite joists and are fixed from below. Speedfit Pipes are placed in the grooves of the plates. Insulation is added below to minimise heat loss. These plates offer versatility, with different size options to suit various applications. Suitable for both traditional and composite joists, they ensure efficient heat distribution and retention. Fixed securely, they prevent downward heat loss effectively.. John Guest Speedfit 1 Spreader Plate - 165mm x 1000mm Silver

Zoro Tools

John Guest Underfloor spreader plates (from below) are an underfloor heating (UFH) pipe fixing system designed for use with traditional timber suspended or pre-engineered joists. There are pipes fitted under the floor, so there is no height build up. The 15 mm pipe is installed into single grooved aluminium spreader plates that transmit heat evenly across the floor. A layer of insulation is placed in the void below the plates to minimise downward heat loss. It is ideal for new builds, extensions and renovations, especially at first floor levels.

ManoMano

For I beam joists to be used with composite joists and are fixed from below. Speedfit Pipe is fixed in the grooves of the plates, insulation is placed in the void below the plates to minimise downward heatloss. Technical Specification Brand JG Speedfit Manufacturer ID JGUFHSP165 Type Speedfit Size (mm) 165
