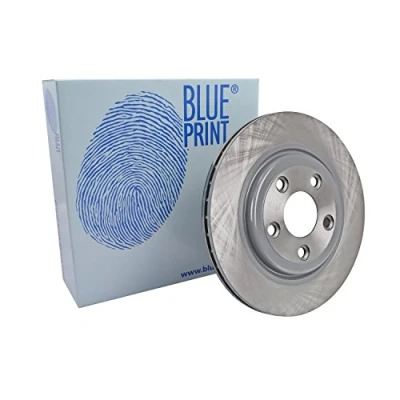

JLM20802, XR827087, XR858129, XR858224 Brake disc BLUE PRINT ADJ134345 Rear Axle 288mm 20mm 5 Hole 108mm internally vented Coated JAGUAR: S Type
Description
Amazon
Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 20 mm; No. of Wheel Bolt/Stud Holes: 5; Height or Thickness: 32,4 mm; Outer Diameter: 288 mm; Pitch Circle Diameter: 108 mm; Material Treatment: high-carbon; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: rear axle; Minimum Thickness of Brake Disc: 18,5 mm; Weight: 5,23 kg; Centering Diameter: 64,5 mm OE numbers (for comparison purposes only): Jaguar XR 858224; OEM numbers (for comparison purposes only): Textar 92099103, Textar 92099100, ATE 24.0120-0708.1, Textar 92099105, Delphi BG3512, TRW DF4106, Bosch 0 986 478 777 among others suitable for: Jaguar: S-Type, XJ6, XJ8
Description
(2)
Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 20 mm; No. of Wheel Bolt/Stud Holes: 5; Height or Thickness: 32,4 mm; Outer Diameter: 288 mm; Pitch Circle Diameter: 108 mm; Material Treatment: high-carbon; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: rear axle; Minimum Thickness of Brake Disc: 18,5 mm; Weight: 5,23 kg; Centering Diameter: 64,5 mm OE numbers (for comparison purposes only): Jaguar XR 858224; OEM numbers (for comparison purposes only): Textar 92099103, Textar 92099100, ATE 24.0120-0708.1, Textar 92099105, Delphi BG3512, TRW DF4106, Bosch 0 986 478 777 among others suitable for: Jaguar: S-Type, XJ6, XJ8
AUTODOCADJ134345; Brake disc; BLUE PRINT; Rear Axle 288mm 20mm 5-Hole 108mm internally vented; for JAGUAR; JLM20802, XR827087, XR858129, XR858224
