JOHN GUEST Acetal ANGLE STOP VALVE. Push fit Branch Tube O.D. 3/8" to 15mm BSP Thread. Speedfit Part No ASV4. Imperial Metric Threaded Fittings for Drinks Dispensers and Pure Water.

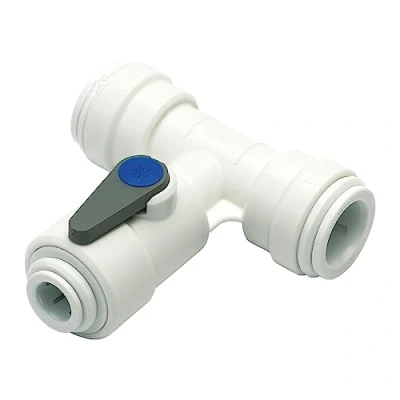

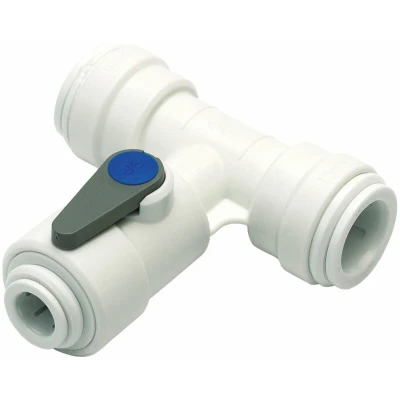

The John Guest Speedfit ASV4 angle stop valve is a push-fit, acetal valve designed to isolate an appliance or fixture branch without affecting the main supply line. It features an integrated service check valve for backflow prevention and a ¼ turn chrome plated ball valve for quick isolation. The connection is designed to be installed easily, providing an instant push-fit seal without the need for tools or sealing agents. The valve is intended for use with potable liquids and related applications, and is compatible with LLDPE or soft metal pipe/tubing. Its construction emphasizes lead-free, non-toxic materials and is manufactured and assembled in the UK.

Features

• Push-fit acetal angle stop valve with 15mm x 3/8" connections and integrated service check valve
• 1/4 turn chrome plated ball valve for quick isolation
• No tools or sealing agents needed for leak-tight connection
• Compatible with LLDPE or soft metal pipe/tubing; suitable for foodstuff, potable liquids, inert gases, and intermittent hot water
• Pressure ratings: 10 bar at 20°C for potable liquids; 4 bar at 60°C for intermittent hot water

Not suitable for compressed air, vacuum, explosive gases, petroleum spirit, or other fuel or heating systems.
