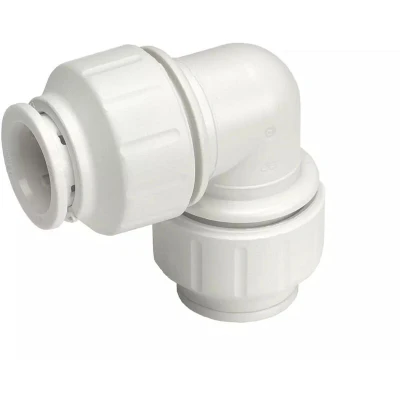

John Guest Speedfit 10MM Equal Elbow

Zoro Tools

Equal Elbows Connects pipe at 90. Push-fit Solution for Plumbing & Heating Systems For use with mains fed and indirect cold water systems, vented and unvented hot water systems, vented and sealed central heating systems. Pipes Speedfit fittings can be used with copper pipe to BS EN 1057 and Speedfit cross-linked polyethylene (PEX) Barrier Pipe to BS7291. NOT to be used with gas, fuel oil or compressed air applications. Speedfit fittings cannot be used on stainless steel pipe. Standards Speedfit products are designed and manufactured under a fully integrated system assessed by B.S.I. to BS EN ISO9001. They are approved by the Water Regulations Advisory Scheme and BBA. Speedfit PEM and PKM fittings and Speedfit barrier pipe are kitemarked to BS7291 Part 1 and 3, Class S. (Licence No. KM39767). Pipe in ceilings and roof voids should be clipped every metre and should not be fitted any closer than 60mm from the end of the fitting. Pipe should be adequately supported by pipe clips to prevent undue stress (side load) on fittings. Can only be used with water or oil based paint, not cellulose based paints, paint thinners or strippers, solder flux or acid-based descalents or aggressive household cleaning products. Speedfit products, when used indoors, are not affected by sunlight. When used outdoors protect from ultra violet light by lagging or painting. It is recommended that all installations are checked prior to use to determine that a seal has been made.

ManoMano

Quickly and securely connects equally sized pipe to form a 90° pipe bend JG Speedfit equal elbow push-fit fitting for the connection of equal sized plastic or copper pipe to form a 90° bend. Simply push the push-fit fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. To demount the connection, unlock the nut by hand and push the collet towards the body of the push-fit fitting and pull the pipe to release. The JG Speedfit equal elbow push-fit fitting is up to 40% faster to install than traditional methods and is easier to use in confined spaces by removing the need for hot works and tools. Designed, manufactured and assembled in the UK. Instant push-fit connection Install and demount in seconds without tools Safe flame-free installation, with no hot works, glue or flux Grip & Seal collet with stainless steel teeth and main O-Ring seal Twist & Lock mechanism secures fitting and adds compression Non-toxic, resists corrosion and no scale build-up Compatible

Plumbing Superstore

John Guest's SpeedFit 90 elbows are flexible and easy to use. They are part of the 'SpeedFit' range offering significant advantages. The push-to-fit design reduces installation time by up to 40% compared to traditional methods, saving time and money. Installation is straightforward due to the push-and-screw design, suitable for plastic and copper pipes with JG inserts. The system is fully demountable, corrosion-resistant, and BSI, WRAS approved. These plastic elbows come in various diameters with two equal spigots, providing versatility and flexibility for domestic applications. Their resistance to limescale and corrosion and a wide range of fittings and diameters make them an outstanding choice.. John Guest Speedfit Push-Fit Plastic Elbow Fitting - 10mm
