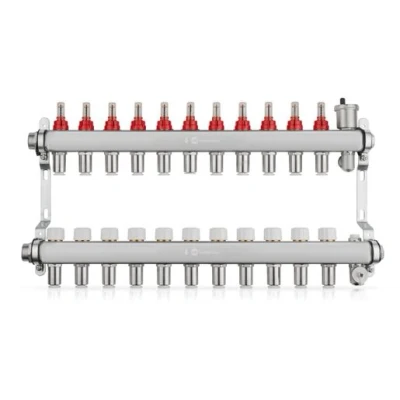

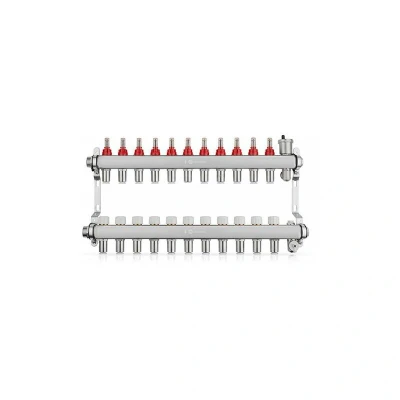

John Guest Underfloor 11 Port Manifold Stainless Steel JGUFHMAN11/3

General description JG Underfloor 11 Port Manifold connects and centralizes underfloor (UFH) pipework in one place and distributes warm water through the pipe circuits to provide even and comfortable heat. When combined with the JG Aura wiring centre and JG Aura heating controls, it offers independent zone control. Made from stainless steel, the manifold is manufactured to the highest standards. Technical specifications Material: Stainless Steel Number of Ports: 11 Connections: 15mm Installation Fast and simple to install with a pre-fitted wall bracket and vibration isolation mount Features push-fit connections (JG Speedfit) for easy assembly Protective dust caps are supplied on the return rail Usage Suitable for underfloor heating applications only Compatible with JG Speedfit PEX and polybutylene barrier pipe (inserts required) Includes screw plugs, pipe inserts (STS), and collet clips
