Jubilee 1XMS 30 40mm Hose Clip

ManoMano

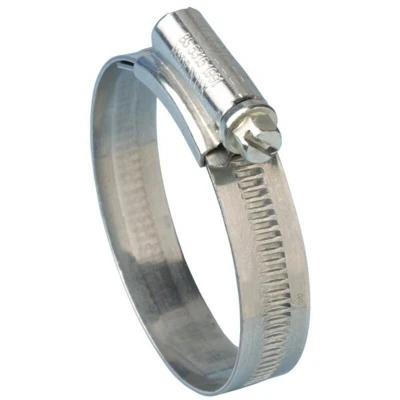

General description Jubilee® 0X Zinc Protected Hose Clip is designed for securing flexible hoses and tubes in various applications. Made from mild steel with zinc plating, these clips offer durability and resistance to wear and tear. They feature a worm drive mechanism with a continuously threaded band for easy adjustment and a smooth inside profile to protect hoses from damage. Technical specifications Material: Mild steel with zinc plating Band width: 13mm (9mm for smaller sizes) Band thickness: approximately 0.914mm Adjustment range: 18-25mm (3/4 - 1 inch) Maximum pressure: 203 psi (bars) Standards met: BS5315:1991, DIN 3017 Fastening method: Slotted hex head screw (7mm A/F) Pack quantity: 1 Compatibility and accessories Compatible with various hoses and tubes used in automotive, agricultural, and ventilation systems Suitable for soft rubber, silicone, and similar hoses Installation Position the clamp around the hose or tube Insert the screw into the slotted hex head Use a

Amazon

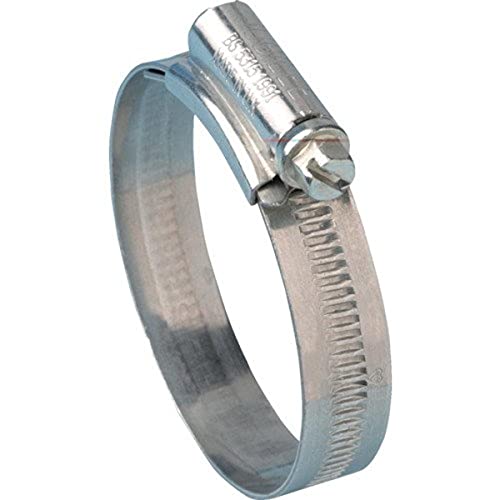

Mild steel Band serrations which ensures smooth efficient transfer of torque to sealing ability Features a screwdriver slot providing a variety of tightening methods
