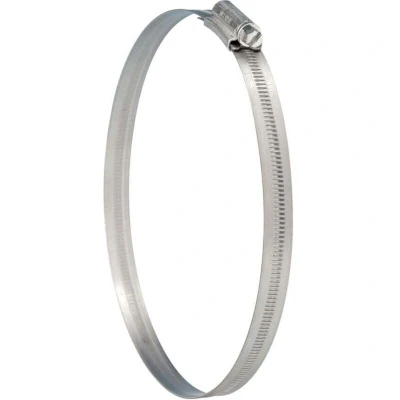

Jubilee 4MS Hose Clip Zinc Plated (BZP) Mild Steel 70MM 90MM

General description This is a zinc-protected mild steel hose clip designed for securing flexible hoses, metal tubes, and similar applications. It features a worm drive mechanism with a continuously threaded band for easy adjustment and a smooth inside profile to protect hoses from damage. Suitable for various day-to-day fixing needs in automotive, agricultural, and ventilation systems. Technical specifications Size: 70 - 90mm (2.3/4 - 3.1/2 inches) Band thickness: 0.914mm Band width: 13mm Maximum pressure: 44 bar (44 psi) Material: Mild steel with zinc plating Standards met: BS5315 (1991), DIN 3017 Fastening method: Slotted hex head 7mm A/F Pack quantity: 1 Type: Standard Hose Clip Installation Place the clip around the hose or tube to be secured. Insert the screw into the worm drive and tighten using a suitable tool (e.g., screwdriver or wrench). Ensure the clip is snug but not over-tightened to avoid damage to the hose. Usage Use for fixing hoses in automotive, plumbing, or

Jubilee® clips are Kite marked to BS5315 (1991) and the company is licensed to ISO 9001. Made from mild steel zinc protected and used for fixing flexible rubber hoses metal tubes etc.Size 4Adjustment . 70 - 90mmAdjustment. 2.3/4 - 3.1/2inPTDJUB4
