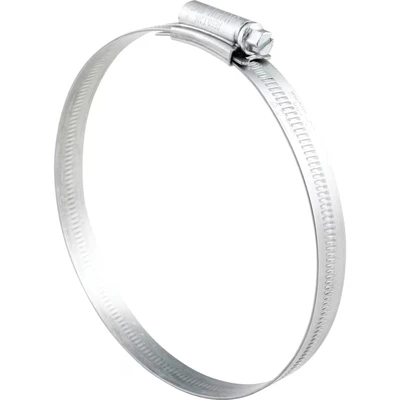

Jubilee 5 Zinc Protected Hose Clip 90 120 mm (3.1/2 4.3/4in) JUB5

General description This Jubilee® 5 Zinc Protected Hose Clip is designed for securing flexible hoses such as rubber or silicone. Made from durable mild steel with zinc protection, it features a worm drive mechanism with a continuously threaded band for easy adjustment and a smooth inside profile to protect hoses from damage. This clip is suitable for various applications including automotive, agricultural, and ventilation systems. Technical specifications Size capacity: 90 - 120 mm (3.1/2 - 4.3/4 in) Band thickness: 0.914 mm Band width: 13 mm Material: Mild steel with zinc plating Maximum pressure: 44 bar / 44 psi Fastening method: Slotted hex head 7 mm A/F Standards met: BS5315:1991 Pack quantity: 1 Compatibility and accessories Compatible with hoses requiring a 90 - 120 mm clamp size Suitable for use with standard hex head screwdrivers or wrenches for tightening Installation Position the clip around the hose at the desired location Insert a suitable tool into the slotted hex head

Pocket clip, zinc plated 90 – 120 mm 5ms by Jubilee Manufacturer part no: 5ms Manufacturer name: Jubilee
