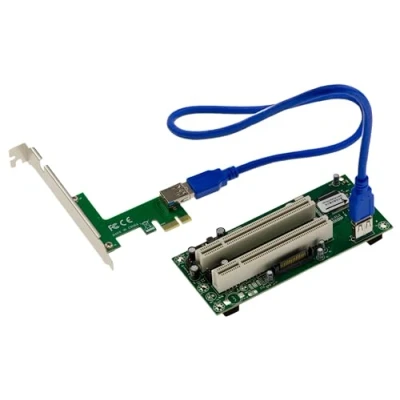

KALEA INFORMATIQUE 2 Port PCI to PCIe x1 Bridge Type Converter Adapter with ASM Chipset Support 16 bit and 32 3.3V or 5V adjustment

To be able to use two PCI cards on a PCI Express port x1, x2, x4, x8 or x16. Plug and play, no installation required. PCI/PCIe bridge purely hardware with ASM1085 CHIPSET. Compatible with PCI 2.2 bus. Supports 16-bit PCI (3.3V) and PCI 32-bit (5V), voltage selection per jumper. Maximum throughput on PCI 66MB/S ports. Power recovery via SATA power plug to connect to PC central power supply. Mounting eyelets for screwing the PCI plate onto a stand. Insulating adhesive pads included. USB 3.0 50cm 5GBps cord link (you can use a longer cord if you wish). Standard bracket (High Profile) with slot for the passage of the USB3 cable. Plate size with 2 PCI ports is 130mm x 55mm Recognized by all OS, no driver needed for the adapter itself which is totally passive. WARNINGS: 1- Your motherboard must accept bridge type, which is not systematic. Check with your motherboard manufacturer that this system will be compatible. 2-Attention, if you use a PCI card with a voltage that is not suitable for it, you may damage the PCI card or adapter. 3-This adapter uses a USB cord, but is not a USB adapter: you cannot connect the PCI plate to a USB port using the USB cord, this is only for connecting the two mother and daughter plates together.
