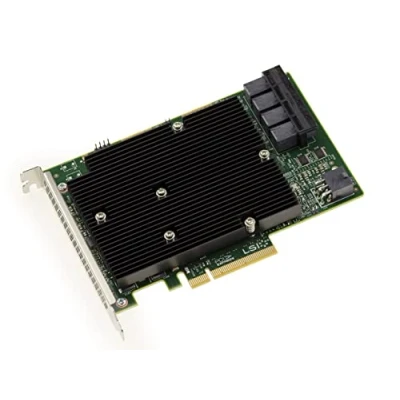

KALEA INFORMATIQUE LSI OEM 9300 16i PCIe 3.0 SAS + SATA Controller Card 12GB 16 Internal Ports SAS9300 03 25600 01B

Card in "OEM" version, ie delivered in neutral box and with drivers to download on the broadcom website. It allows you to add 16 internal SAS ports to a PC or server through a PCIe 3.0 (or more) connector in 8x (or 16x). Two 8-port 12GB LSI SAS 3008 controllers for supporting 16 SAS or SATA drives. PCIe 3.0 x8, Supported transfer rates: 3Gb/s - 6Gb/s (SATA) and 3Gb/s - 6Gb/s - 12Gb/s (SAS), High performance, with 12GB/s transfer rates and multiple SAS cores, 16 internal ports through 4 Mini SAS HD SFF8643 connectors each supporting 4 drives. Maximum number of devices supported: 1024 HDD SATA or SAS Form Factor: High Profile 6 pin PCIe type auxiliary power connector. Supports Passive Copper connections. Compatible with the following OS: Windows, Linux Red Hat, Linux SUSE Enterprise Server (SLES), Solaris, and VMware. LSI Part Number:02-25600-01B
