KALEA INFORMATIQUE Mini PCI Express MiniPCIe 2 Port RS422 RS485 DB9 Serial Card with EXAR XR17V352 Chipset Supplied Adapters for Wire to Mount.

Name: KALEA INFORMATIQUE Mini PCI Express MiniPCIe 2 Port RS422 RS485 DB9 Serial Card with EXAR XR17V352 Chipset Supplied Adapters for Wire to Mount.
Brand: KALEA-INFORMATIQUE
SKU: 0326e25cfac0c3f560eb66fabdf4ed7e

1/1

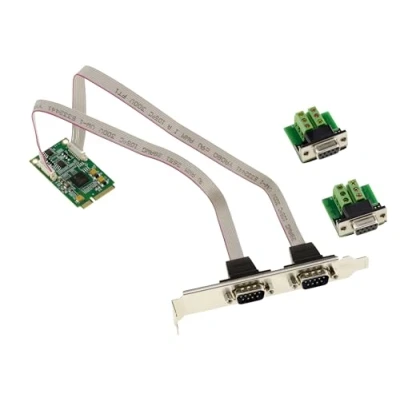

Image of KALEA INFORMATIQUE Mini PCI Express MiniPCIe 2 Port RS422 RS485 DB9 Serial Card with EXAR XR17V352 Chipset Supplied Adapters for Wire to Mount.

Amazon Marketplace

Prices from

43.46

Featured

	£ 43.46	To Shop
	£ 43.46	To Shop
COMPARE ALL WEBSHOPS (2)

Description

Amazon Mounts to the mini PCI Express port of laptops (52 pin). Drivers for Windows 11, 10, 8, Windows 7 / Vista / XP / Server 2003-2008-2012, Linux Kernel 2.6x or higher. EXAR XR17V352 Chipset. Mini PCIe Rev 1.2 RS485 signals: DATA+ (B), DATA-(A), GND. RS422 signals: T/R+, T/R-, RXD+, RXD-, GND. 600W surge protection. 15KV ESD protection for all serial ports. Operation mode: asynchronous、point-to-point or point-to-multipoint Mounting 2 wires (half duplex) or 4 wires (full duplex). Transmission distance 1.2km (300bps-921600bps) Sleep mode with alarm clock indicator. The UART interface supports 7/8 data bits and even/odd/mark/space/no parities. None,hardware and xon/xoff flow control. Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 equipment. Operating temperature range -40 to 85⁰C. The board is supplied with a 2-port extension bracket with DB9 male plugs and insert plates for wire-to-wire mounting.
