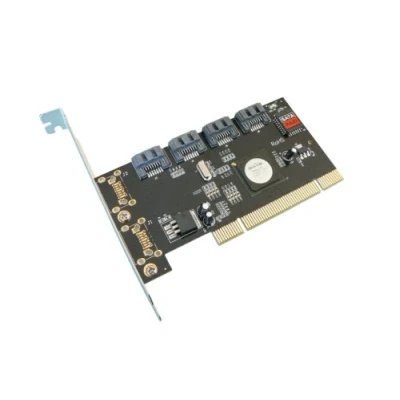

KALEA INFORMATIQUE PCI SATA 4 port controller card. 32 Bits with SILICON IMAGE SIL 3124 Chipset, RAID 0 1 5

For desktop PCs with PCI port. Allows you to add 4 SATA ports to connect 1 to 4 SATA devices either independently or as a RAID cluster. Compatibility: SATA 1/2 - Attention, the bandwidth of the PCI bus will limit the card to the maximum speed of the PCI bus (264 MB/s for the fastest 32-bit version, i.e. PCI2.3). So this speed is higher than SATA I (150MB/s), but lower than SATA II (300MB/s). SATA 3 compliant (the maximum speed is then throttled to that of the PCI port, i.e. no more than 264 MB/s). PCI connector 32bit 33MHz 5V, compatible with SATA 1, 2 and 3 (see section "Compatibility"), accepts SATA 2 with limitations. For hard drives or optical drives. Maximum transfer speed of 264MO/second (PCI2.3), Four independent SATA ports, with 256b buffer per channel, all four ports are internal and hot plug-capable. NCQ and DMA compatible Supports up to four SATA devices in addition to the embedded devices that are naturally supported by the motherboard. Powered by PCIe bus and 12V Molex connector. Voltage at output 1394a of 12V. Operating temperature: 5 to 50 °C. Operating humidity 5 to 95%. Dimensions: 120 x 80 mm. Comes with high profile angle
