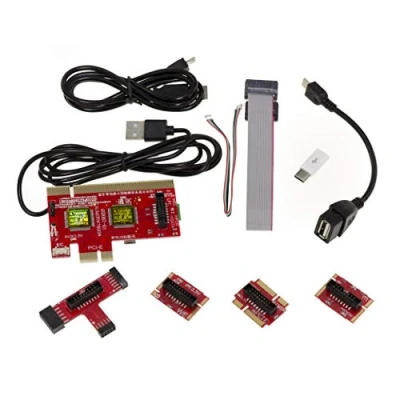

KALEA INFORMATIQUE POST CARD 7 in 1 tester for PC motherboards and PORTABLE PCs. PCIe LPC EC DEBUG PORT interfaces

For DESKTOP PC (PCI/PCIe port) or PORTABLE (miniPCIe / LPC ports) or telephone (USB). THIS TESTER IS NOT A CONSUMER DEVICE - YOU WILL NEED TO OPEN COMPUTERS TO USE IT, AND A GOOD LEVEL OF COMPUTER SKILLS IS REQUIRED TO INTERPRET THE CODES. ENGLISH IS REQUIRED TO USE THIS TOOL, AS ALL POST CODE DATABASES ARE IN ENGLISH. Compatible with the vast majority of motherboards, including the most recent. This tester lets you quickly diagnose the source of a motherboard fault. Connection: - PCI or PCIe directly via the main module, - MiniPCIe or mSATA via the daughter card connecting to the main module, - LPC on "DEBUG" connector via T connector connecting to the main module. This multiple connector supports the different types of "DEBUG" port. - EC Wire (for "EC DEBUG" ports on Compal, Quanta, Lenovo PCs, etc.) on the main module, - LPC on "fly wire" socket connecting to the main module, - USB for telephone. Once the board is connected in the chosen mode, you can read the results on your smartphone, which will be communicating with the tester via Bluetooth. - You can check the power supplies, CPU activity, RAM, HDD, etc. via LEDs on the board. - Your smartphone will display the POST code of the test that has failed, indicating the stage to be checked. A few explanations on error codes: When the PC is booted, the card will indicate a code corresponding to the current error. This code comes from the BIOS self-test when the PC is booted (Power On Self Test - POST). The richness of the teaching will therefore be proportional to the richness of the motherboard self-test, depending on the type of BIOS and its generation.
