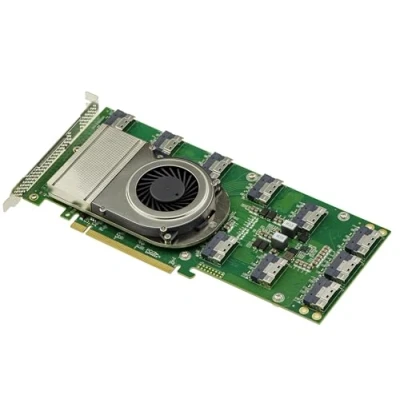

KALEA INFORMATIQUE Switch Type PCIe 4.0 Controller Card with 10 Ports SFF 8654 8i to control up 20 NVMe SSDs or 5 Graphics Cards, Broadcom Chipset PEX88096.

10-port NVMe PCIe 4.0 x16 switch card based on the Broadcom PEX88096 controller. With its own PCIe switch function, it supports multiple PCIe channel distribution modes, including 20×(x4), 10×(x8) or 5×(x16). With a transfer rate of up to 256Gbps, this card can directly connect up to 20 U.2 NVMe SSDs. It is specifically designed for high-end applications such as SSD performance testing and GPU expansion testing, while providing enterprise-grade NVMe connectivity for a wide range of standard x86 servers and workstations. Designed as a high-capacity expansion solution for flash servers, this card features ultra-high bandwidth, low latency PCIe 4.0 connectivity, ensuring accurate and real-time test data and helping to accelerate product development and validation cycles. Technical specifications: PCI Express 4.0 x16 bus. Broadcom PEX88096 Controller Switch card that works in the following modes: 20 x PCIe 4.0 X4 / 10 x PCIe 4.0 X8 / 5 x PCIe 4.0 X16. 10 x SFF8654 8I ports Hardware adapter independent of the operating system, compatible with any Windows, Mac, Linux system etc. Operating temperature 0°C to 55°C. Power consumption min/max: 20.532W/23.592W. PCB dimensions 111 × 267 × 20 mm.
