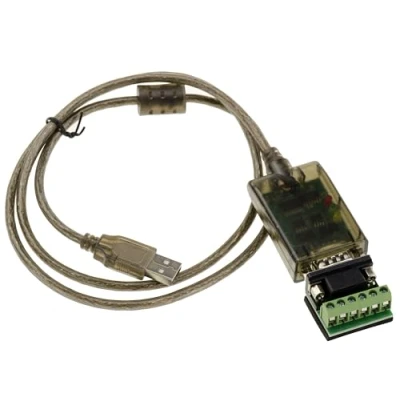

KALEA INFORMATIQUE USB to RS 422 485 converter with FTDI FT232 Chipset. wire or DB9 plug mounting

FTDI CHIPSET TYPE FT232 - FDTI chipsets are very popular for their stability in processes USB UART Standard USB 2.0, compatible with USB 1/2/3 RS-485,RS-422 TIA/EIA USB signals: VCC, DATA+, DATA-, GND and FG RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND RS-485 signals: T/R+,T/R-.GND Supported modes: asynchronic, point/point, point/multipoint (2 half duplex wires or 4 full duplex wires) Automatic data flow control (data-flow direction) Supported speeds from 300 baud to 921600 baud; UART interface 7/8 data bits,1 or 2 stop bits, even/odd/mark/space/none Flow control types none, hardware and xon/xoff. Transmission distance RS-485/422 side: 1.2 km (300bps-921600bps), and USB side: Max 5 m (we do not recommend the use of USB extension cords) Protection ±15KV ESD Activity diodes: Power (PWR), Sending (TXD) Reception (R). XD) Windows XP,Vista,7,8,10,11 32/64-bit Windows Server 2K3,2K8,2K12 32,64-bit Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Mac OS-X Linux 3.2 and more Android
