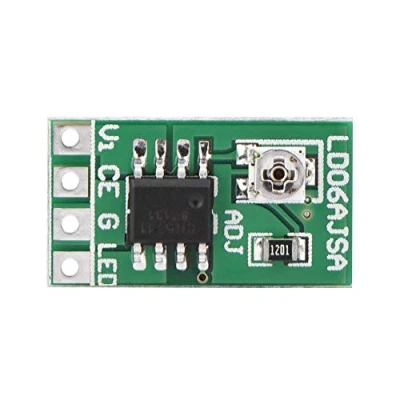

Keenso Adjustable Current LED Driver,9W DC 3.3V 3.7V 5V Driver 30 1500mA Constant Module for 18650 Li ion

【Driver】--Current LED Driver is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant output current can be set up to 1.5A with an external resistor. 【Ideal for LED Driver】-- Adjustable Current LED Driver consists of high precision reference voltage, amplifier, current mirror, etc. The on-chip power transistor and current sense block greatly reduce the external component count, which makes this product ideal for LED driver. 【Feature】--When the CE pin is high, the input voltage is greater than 2.8V, and is larger than the LED forward voltage plus the required voltage drop, it functions normally to deliver constant current from the LED pin,With e chip enable function, which can shutdown the whole chip to limit the current consumption within 1uA. 【Temperature Regulation】--Adjustable Current LED Driver is Adopts the temperature regulation instead of temperature function, the temperature regulation can make the LED being turned on continuously in case of high ambient temperature or high voltage drop. When the junction temperature reaches about 135 °C, the internal temperature regulation block reduces the LED current so that the junction temperature will not rise any more. 【Over Current Adjustable Current LED Driver is Adopts the over current block. When LED current approaches 1.9A(Typical), the over current block begins to function to prevent the LED current from increasing further.
