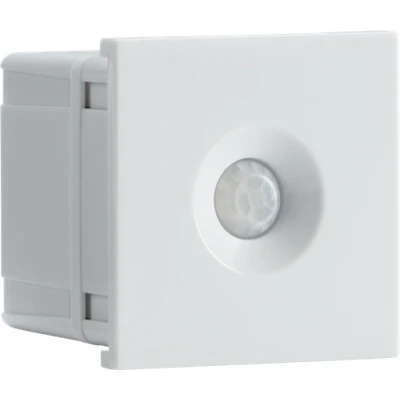

KnightsBridge 120 PIR Sensor Module 50 x 50mm White

Amazon

Euro Module Compatibility: Designed to fit euro modular frames accepting a standard 50 × 50mm module, suitable for use with a 47mm back box. PIR Motion Detection: Passive infrared operation with a 120° field of detection and a sensing range of up to 5 metres for reliable movement sensing. Fixed Time & Lux Control: Pre-set 3-minute time delay with fixed lux sensitivity, ideal for straightforward, maintenance-free operation. Flexible Load Handling: Supports loads up to 100W LED or 200W incandescent, suitable for a wide range of lighting applications. Mains Powered Operation: Rated at 220–240V 50Hz and requires both live and neutral wiring for correct installation., Manufacturer: Knightsbridge

Electrical World

Suitable for use in euro modular frames that can take a 50 x 50mm module - Voltage: 220-240V 50Hz - Loading: Max. 100W LED and 200W Incandescent - Operation: Passive infrared - Time pre-set: 3 mins - Field of Detection: 120° - Range: 5m - Suitable for 47mm back box - Lux sensitive and Time operation fixed - Live and Neutral wiring required NB: Shown mounted in a NET2GWH (not included)Technical SpecificationRecessed Depth: 40Min. Mounting Box Depth: 47mmConstruction: PolycarbonateFinish: WhiteClass: IIIP Rating: IP20Primary Voltage: 230V 50HzTechnical Specification:Finish: White IP Rating: IP20Dimensions: Height: 50mmWeight: 0.054KgWarranty: 2 Years
