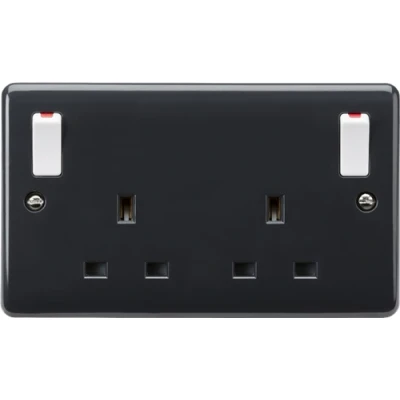

KnightsBridge 13A 2G DP switched socket with white outboard rockers [Part M compliant]

Electrical World

13A 2G DP switched socket with white outboard rockers [Part M compliant]The Curved Edge range has been expanded to include a range of wiring accessories that comply with current Building Regulations Part M. It is recommended that switches contrast with the front plate which in turn contrast with the wall. This range satisfies both recommendations. With a Light Reflectance Value (LRV) of approx. 8.9 (Part M recommends a contrast of 30% LRF between front plate and wall) Benefits Inherent Anti-microbial properties €“ 3rd party tested Certified to all relevant British Safety standards Features 13A 230V Double pole Outboard rockers with red flash Twin earth Top access to captive terminals to speed up installation Min. mounting box depth: 25mm Technical Specification:Height: 86Width: 146Projection: 7Min. Mounting Box Depth: 25mmConstruction: Thermoset resinFinish: AnthraciteIP Rating: IP20Primary Voltage: 230V 50HzPositions: 2GPlate Size: DoubleSocket/Spur Control: SwitchedSwitch Type: Double PoleLoad/Max. Load: 13AEarth Terminal: YesTerminal Capacity: 3 x 2.5mm² or 2 x 4.0mm²Dimensions: Height: 86mmWeight: 0.168KgWarranty: 25 Years

Zoro Tools

Knightsbridge 13A 2G DP switched socket with white outboard rockers \(Part M compliant\) - PM9001 | Description: The Curved Edge range has been expanded to include a range of wiring accessories that comply with current Building Regulations Part M. It is recommended that switches contrast with the front plate which in turn contrast with the wall. This range satisfies both recommendations. With a Light Reflectance Value (LRV) of approx. 8.9 (Part M recommends a contrast of 30% LRF between front plate and wall) Benefits - Inherent Anti-microbial properties 3rd party tested - Certified to all relevant British Safety standards Features - 13A 230V - Double pole - Outboard rockers with red flash - Twin earth - Top access to captive terminals to speed up installation - Min. mounting box depth: 25mm | Features: Finish: Anthracite, Material: Thermoset resin, IP Rating: IP20, Height: 8.6cm, Width: 14.6cm, Projection: 0.7cm, Weight: 0.17kg
