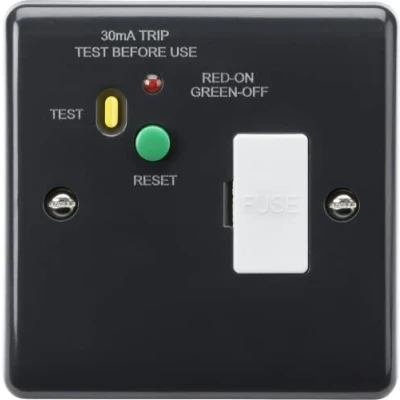

KnightsBridge 13A RCD fused spur (Type A) [Part M Compliant]
![Image of KnightsBridge 13A RCD fused spur (Type A) [Part M Compliant]](https://img.bigshopper.co.uk/s_7-3OCdVG49pwh3jzNdnw8Or--R6DhcOtQnOKy2hDk/rs:fit:400:400/q:90/bg:ffffff/exar:1/aHR0cHM6Ly9wcm94eS5iaWdzaG9wcGVyLmNvbS9wcm94eT91cmw9aHR0cHMlM0ElMkYlMkZtLm1lZGlhLWFtYXpvbi5jb20lMkZpbWFnZXMlMkZJJTJGMzFJeS1waCUyQk5lTC5fU0w1MDBfLmpwZyZ0bGQ9Y28udWs/.webp)
Featured
|
£ 33.99 |
To Shop
|
|
£ 38.19 |
To Shop
|
|
£ 38.19 |
To Shop
|
Description
The Knightsbridge 13A RCD Fused Spur (Type A) is designed to meet current Building Regulations Part M, making it a robust choice for modern wiring applications. This product is part of the Curved Edge range, which adheres to best practice by ensuring a contrast between the switch, the front plate, and the wall. With a Light Reflectance Value (LRV) of approximately 8.9, it meets the Part M recommendation for a 30% contrast ratio, ensuring visibility for all users.
Key Benefits
- Inherent anti-microbial properties have been third-party tested, promoting a healthier environment.
- Fully certified to all relevant British Safety Standards and UKCA certified, ensuring compliance and safety.
Features
This RCD fused spur is specifically designed as a Type A device, which effectively detects AC residual currents and pulsating DC up to 6 mA. Such functionality is essential for equipment with sensitive electronic components, including IT equipment.
The device operates as a passive (latching) type, meaning it automatically resets following a power outage; users do not have to manually reset it after an interruption. The product is rated for 13A at 230V and features captive screw terminals for secure wiring connections.
The technical specifications of the Knightsbridge 13A RCD fused spur include:
- Tripping current (IΔn): 30mA
- Trip time @ IΔn: less than 40ms
- Minimum mounting box depth: 35mm
Construction and Design
Constructed from durable thermoset resin, the fused spur boasts an anthracite finish that not only enhances its aesthetic appeal but also aligns with modern interior design trends. The product features an IP20 rating, indicating its suitability for indoor use in dry areas.
Dimensions are compact, with a height and width of 86mm (8.6cm) and a projection of just 12mm (1.2cm). Additionally, the light weight of the product, at merely 0.157 kg, facilitates easy handling and installation.
Installation and Capacity
The Knightsbridge 13A RCD fused spur includes an earth terminal and features a cable outlet at the bottom equipped with strain relief. The terminal capacity permits the use of either two 2.5mm² cables or one 4.0mm² cable, accommodating a variety of installation needs.
With a warranty period of 2 years, this product provides assurance of quality and reliability, making it an excellent choice for those seeking both safety and compliance in electrical fittings. Whether for residential or commercial applications, the Knightsbridge 13A RCD fused spur is an outstanding addition to any wiring system.
Description
The Knightsbridge 13A RCD Fused Spur (Type A) is designed to meet current Building Regulations Part M, making it a robust choice for modern wiring applications. This product is part of the Curved Edge range, which adheres to best practice by ensuring a contrast between the switch, the front plate, and the wall. With a Light Reflectance Value (LRV) of approximately 8.9, it meets the Part M recommendation for a 30% contrast ratio, ensuring visibility for all users.
Key Benefits
- Inherent anti-microbial properties have been third-party tested, promoting a healthier environment.
- Fully certified to all relevant British Safety Standards and UKCA certified, ensuring compliance and safety.
Features
This RCD fused spur is specifically designed as a Type A device, which effectively detects AC residual currents and pulsating DC up to 6 mA. Such functionality is essential for equipment with sensitive electronic components, including IT equipment.
The device operates as a passive (latching) type, meaning it automatically resets following a power outage; users do not have to manually reset it after an interruption. The product is rated for 13A at 230V and features captive screw terminals for secure wiring connections.
The technical specifications of the Knightsbridge 13A RCD fused spur include:
- Tripping current (IΔn): 30mA
- Trip time @ IΔn: less than 40ms
- Minimum mounting box depth: 35mm
Construction and Design
Constructed from durable thermoset resin, the fused spur boasts an anthracite finish that not only enhances its aesthetic appeal but also aligns with modern interior design trends. The product features an IP20 rating, indicating its suitability for indoor use in dry areas.
Dimensions are compact, with a height and width of 86mm (8.6cm) and a projection of just 12mm (1.2cm). Additionally, the light weight of the product, at merely 0.157 kg, facilitates easy handling and installation.
Installation and Capacity
The Knightsbridge 13A RCD fused spur includes an earth terminal and features a cable outlet at the bottom equipped with strain relief. The terminal capacity permits the use of either two 2.5mm² cables or one 4.0mm² cable, accommodating a variety of installation needs.
With a warranty period of 2 years, this product provides assurance of quality and reliability, making it an excellent choice for those seeking both safety and compliance in electrical fittings. Whether for residential or commercial applications, the Knightsbridge 13A RCD fused spur is an outstanding addition to any wiring system.
Product specifications
