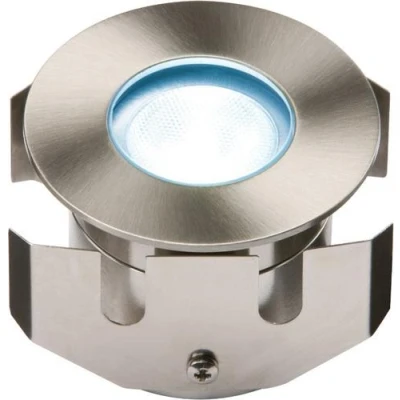

KnightsBridge 1W LED LV Stainless Steel Decking Light Blue

The Knightsbridge 1IPB/1IPW is an ideal solution for enhancing outdoor spaces such as decks and porches, designed to withstand heavy foot traffic. Constructed from marine-grade 304 stainless steel, this recessed decking light boasts a high IP68 rating, ensuring it is fully protected against dust ingress and can withstand prolonged immersion in water. This makes it perfect for outdoor installation, offering both durability and reliability.

This luminaire features a high-powered blue LED that operates at a maximum of 1 watt. The LED is fixed and non-replaceable, ensuring a long lifespan and consistent performance. The unit is designed to be powered by a constant current driver, specifically the 1W350A model (sold separately), which allows for easy installation and compatibility. It is important to note that the fittings must be wired in series, allowing for a maximum of twelve lights to be connected in a single circuit for extensive applications.

Technical Specifications

- Finish: Stainless Steel

- Material: Marine Grade 304 Stainless Steel

- IP Rating: IP68 (Protects against total dust ingress and long-term immersion)

- Dimensions: Diameter 60mm, Depth 40mm

- Cut-out Size: 50mm

- Voltage: 12-36V

- Wattage: 1W

- Cable: Includes 3m of 2-core 0.75mm² H05RN-F cable

- Method of Fixing: Recessed with twin spring clips (not supplied)

- Weight: 0.5 kg

- CE Mark: Yes

- Quality Assurance: ISO 9001 QMS certification

- Compliance: Manufactured in accordance with EN60598

Installation and Use

The Knightsbridge decking light is designed for recessed installation, making it an excellent fit for various outdoor settings. The installation requires a minimum of one and a maximum of four fittings when used with the designated driver. The recessed depth of 40mm allows for easy integration into different surfaces, while the 3m length of the supplied cable provides flexibility during installation.

This lighting solution is non-dimmable and is perfect for providing a soft yet effective illumination to enhance the aesthetic of your outdoor area. The use of tempered glass adds an extra layer of durability and sophistication to the design, ensuring it complements a wide range of architectural styles.

In summary, the Knightsbridge 1IPB/1IPW is a high-quality, durable lighting option built for outdoor environments. Its robust construction and effective illumination make it a perfect choice for those looking to enhance their outdoor spaces with reliable and stylish lighting solutions.
