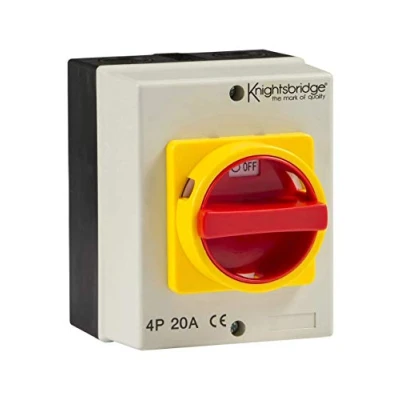

KnightsBridge 20A 4 Pole 230V 415V IP65 Industrial Rotary Isolator
Description
Electrical World
.container a:link { color: blue; } .container a:visited { color: purple; } .container a:hover { color: red; } .container a:active { color: green; } Knightsbridge 20A 4 Pole 230V-415V IP65 Industrial Rotary Isolator The IN0025, 20 Amp 4 Pole AC 230-415V(Single Phase/Three Phase) Rotary Isolator Switch by KnightsBridge is generally used to isolate power in commercial and industrial applications such as in factories to isolate conveyor belts, in kitchens to isolate fryers and cookers and on farms to isolate meal bins etc. Ideal for both Indoor & Outdoor use due to its IP65 Rating (Dust Tight and protected against Water Jets). 20-25mm Knockouts make cable access easy. Handy Locking Mechanism while off keeps it safe from Children or Un-Authorised access. Switch interlocks with lid to prevent opening whilst in on position. Includes earth terminals. Comes with a High Visibility Red/Yellow Handle. Complies to the latest relevant safety standards - IEC60947-1 & 3 EN60947 VDE 0660-107. Technical Specification: Dimensions: 125mm (Height) x 100mm (Width) x 86mm (Depth) - 121mm (Total Depth) Fixing Centre: 80 x 80mm Maximum Rated Voltage: 600V Resistance to Surge Pulse Voltage: 6KV Class: Class I Number of Poles: 4 Earth Connections: 2 Lock Facility: Yes (Padlock not supplied) Cover Interlock: Yes in ON position Construction: ABS/Polycarbonate IP: IP65 Cable Entry/Knockouts: 2 x 20/25mm Top. 2 x 20/25mm Bottom Manufactured & Tested to: IEC60947-1 & 3 EN60947 VDE 0660-107 Comes with a 1 Year Manufacturer's Warranty Specification Sheet This item is usually wired using Hi-Tuff or SWA cable such as our 2.5mm 5 Core Steel Wire Armoured Cable.
Description
(2)
.container a:link { color: blue; } .container a:visited { color: purple; } .container a:hover { color: red; } .container a:active { color: green; } Knightsbridge 20A 4 Pole 230V-415V IP65 Industrial Rotary Isolator The IN0025, 20 Amp 4 Pole AC 230-415V(Single Phase/Three Phase) Rotary Isolator Switch by KnightsBridge is generally used to isolate power in commercial and industrial applications such as in factories to isolate conveyor belts, in kitchens to isolate fryers and cookers and on farms to isolate meal bins etc. Ideal for both Indoor & Outdoor use due to its IP65 Rating (Dust Tight and protected against Water Jets). 20-25mm Knockouts make cable access easy. Handy Locking Mechanism while off keeps it safe from Children or Un-Authorised access. Switch interlocks with lid to prevent opening whilst in on position. Includes earth terminals. Comes with a High Visibility Red/Yellow Handle. Complies to the latest relevant safety standards - IEC60947-1 & 3 EN60947 VDE 0660-107. Technical Specification: Dimensions: 125mm (Height) x 100mm (Width) x 86mm (Depth) - 121mm (Total Depth) Fixing Centre: 80 x 80mm Maximum Rated Voltage: 600V Resistance to Surge Pulse Voltage: 6KV Class: Class I Number of Poles: 4 Earth Connections: 2 Lock Facility: Yes (Padlock not supplied) Cover Interlock: Yes in ON position Construction: ABS/Polycarbonate IP: IP65 Cable Entry/Knockouts: 2 x 20/25mm Top. 2 x 20/25mm Bottom Manufactured & Tested to: IEC60947-1 & 3 EN60947 VDE 0660-107 Comes with a 1 Year Manufacturer's Warranty Specification Sheet This item is usually wired using Hi-Tuff or SWA cable such as our 2.5mm 5 Core Steel Wire Armoured Cable.
AmazonInsulated 4 pole AC (230v-415v) IP65 rated with easy access via m20-25mm knockouts Switch interlocks with lid to prevent opening whilst in on position includes earth terminals. Complies to the latest relevant safety standards Insulated 4 pole AC (230v-415v) IP65 rated easy access via m20-25mm knockouts red/yellow handle switch interlocks with lid to prevent opening whilst in on position includes earth terminals. Complies To the latest relevant safety standards, Weight: 0.881849048 Pounds, Manufacturer: KNIGHTSBRIDGE
