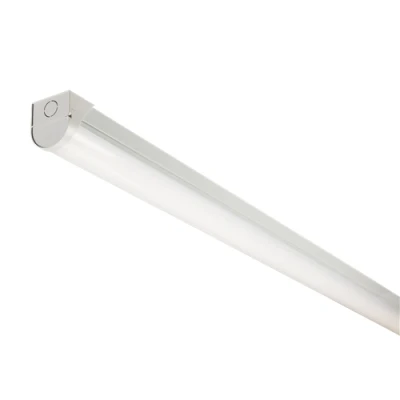

KnightsBridge 230V 4ft 32W DALI CCT Adjustable Batten
Description
Electrical World
230V 4ft 32W DALI CCT Adjustable BattenCCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and Simple installation. CCT adjustable (3000K, 4000K, 5700K) DALI control gear for connection into simple room or networked building control system High efficiency Rear and end conduit fixings Hinged gear tray Push-fit loop in-loop out connectors Simple one step installation Technical Specification:Length: 1225Width: 61Projection: 71Construction: Pressed steelFinish: WhiteClass: IIP Rating: IP20Primary Voltage: 230V 50HzMounting Method: SurfaceDiffuser: OpalDriver: IncludedAmbient Operating Temperature: -20~40Lamp Technology: LEDNo. of Lamps/LEDS: 168Energy Rating (Class) post 2021 SLR: DBeam Angle: 105CCT: 3000/4000/5700Light Colour: CCTLumens: 3790/4480/4120Wattage: 32Actual Lumens (Light Source only): 4975.56Circuit Wattage: 31.66Efficacy: 157.16Actual CRI: 86.89SDCM Tolerance: 3.13Operating Current: 0.141PF (Power Factor): 0.972Driver Type: DALIMax. Output: 31.5Output Voltage: 25-42Output Current: up to 750Power Factor: 0.9Isolation: SELVAmbient Temperature (Ta): 50Case Temperature (Tc): 90Dimensions: Length: 1225mmWeight: 1.47KgWarranty: 5 Years
Description
(2)
230V 4ft 32W DALI CCT Adjustable BattenCCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and Simple installation. CCT adjustable (3000K, 4000K, 5700K) DALI control gear for connection into simple room or networked building control system High efficiency Rear and end conduit fixings Hinged gear tray Push-fit loop in-loop out connectors Simple one step installation Technical Specification:Length: 1225Width: 61Projection: 71Construction: Pressed steelFinish: WhiteClass: IIP Rating: IP20Primary Voltage: 230V 50HzMounting Method: SurfaceDiffuser: OpalDriver: IncludedAmbient Operating Temperature: -20~40Lamp Technology: LEDNo. of Lamps/LEDS: 168Energy Rating (Class) post 2021 SLR: DBeam Angle: 105CCT: 3000/4000/5700Light Colour: CCTLumens: 3790/4480/4120Wattage: 32Actual Lumens (Light Source only): 4975.56Circuit Wattage: 31.66Efficacy: 157.16Actual CRI: 86.89SDCM Tolerance: 3.13Operating Current: 0.141PF (Power Factor): 0.972Driver Type: DALIMax. Output: 31.5Output Voltage: 25-42Output Current: up to 750Power Factor: 0.9Isolation: SELVAmbient Temperature (Ta): 50Case Temperature (Tc): 90Dimensions: Length: 1225mmWeight: 1.47KgWarranty: 5 Years
Net LightingCCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and simple installation. - CCT adjustable (3000K, 4000K, 5700K) - DALI control gear for connection into simple room or networked building control system - High efficiency - Rear and end conduit fixings - Hinged gear tray - Push-fit loop in-loop out connectors - Simple one step installation
Product specifications
