KnightsBridge 230V 5A IP65 Photocell Switch

Electrical World

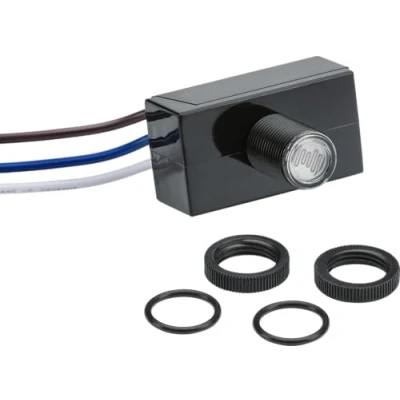

Direct wire-in thermal photodiode dusk to Dawn sensor. Suitable for mounting in appropriate light fittings and suitable enclosures. @@@Qb6OnRLdzo7p/iHwaM7fzGVfoSoYOyI2@@@ for controlling lighting automatically based on the ambient lighting level. - 230V AC 50Hz - IP65 rated (once installed) - Max. load: 500W Incandescent / 850VA Inductive / 300W LED - Operating range: On 10-20lux / Off 30-60lux - Time delay: 20-120 seconds - Ambient temperature: -40°C to 70°C - Relative humidity: 99% RH - Pre-wired with 300mm cable - Sensor projection: 21mm - Cut out required: 17mm - Seals and locknuts includedTechnical SpecificationProjection: 21Cut-out Diameter: 17Min. Mounting Box Depth: 25mmConstruction: PolycarbonateFinish: BlackClass: IIIP Rating: IP65Primary Voltage: 230V 50HzCable Length: 0.3Technical Specification:Finish: Black IP Rating: IP65Dimensions: Length: 53mmWeight: 0.045KgWarranty: 2 Years

Amazon

Automatic Dusk to Dawn Control: Thermal photodiode sensor activates lighting based on ambient light levels (On: 10–20 lux / Off: 30–60 lux) with a 20–120 second delay. Versatile Compatibility: Suitable for direct wire-in installation within light fittings or enclosures; pre-wired with 300mm cable for convenience. Max.Load: Supports 500W incandescent, 850VA inductive, and 300W LED loads at 230V AC. Durable Weatherproof Design: IP65 rated (when installed) with seals and locknuts included, ideal for indoor or outdoor use. Compact & Easy Installation: Requires a 17mm cut-out with 21mm sensor projection, operates in extreme conditions (-40°C to 70°C, 99% RH).
