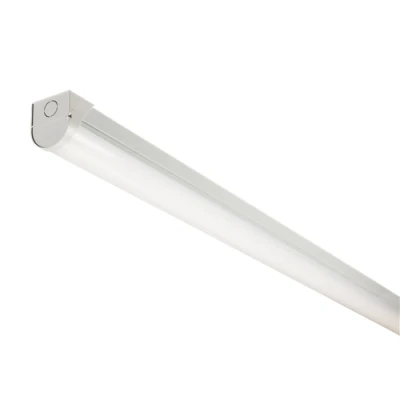

KnightsBridge 230V 5ft 22/41W CCT Adjustable Microwave Self Test Emergency Batten

This CCT and wattage adjustable LED batten provides an efficient lighting solution for a variety of settings. Constructed from high-quality pressed steel and polycarbonate, this batten is designed to offer long-term durability and low maintenance. It is a perfect replacement for conventional fluorescent fixtures, promoting an eco-friendly approach with its low energy consumption.

The adjustable CCT (Correlated Colour Temperature) feature allows users to tailor the lighting according to their needs, with options of 3000K, 4000K, and 5700K. This flexibility ensures ideal light temperature for different activities or ambiance preferences. Additionally, the wattage can be adjusted between 22W and 41W. At 22W, it delivers an impressive 3,300 lumens at 4000K, while at 41W, it provides a robust 6,040 lumens at the same colour temperature, ensuring ample illumination for various environments.

Featuring advanced microwave presence detection technology, this LED batten adjusts to the presence of people within its vicinity. Users can customise the sensor settings to control activation based on specific needs, enhancing energy savings. The built-in self-test emergency function is designed to periodically perform automatic tests on the batten’s emergency features, ensuring reliability during power outages.

The installation process is straightforward and user-friendly. The design incorporates push-fit loop in-loop out terminals along with a hinged gear tray, allowing for fast and uncomplicated setup. The batten can be mounted easily on ceilings or walls using rear and end conduit fixing points.

Technical Specifications

- Length: 1525mm

- Width: 61mm

- Projection: 71mm

- Weight: 2.03 Kg

- IP Rating: IP20

- Primary Voltage: 230V, 50Hz

- Operating Temperature: -5°C to 50°C

- Lamp Technology: LED

- Number of LEDs: 224

- Efficacy: 160.58 lumens per watt

- Beam Angle: 145°

- Actual Lumens: 6,526.1 for the light source only

- Sensor Detection Angle: 150° when wall-mounted, 360° when ceiling-mounted

- Detection Range: Optimal at 6m for a mounting height of 3m; maximum height of 6m

- Sensor Duration: Adjustable from 5 seconds to 30 minutes

- Lux settings range from 2 lux to 50 lux

With a 5-year warranty and efficient performance in various environments, this LED batten is the ideal lighting solution for workplaces, commercial spaces, and residential areas, combining modern technology with practical functionality.
