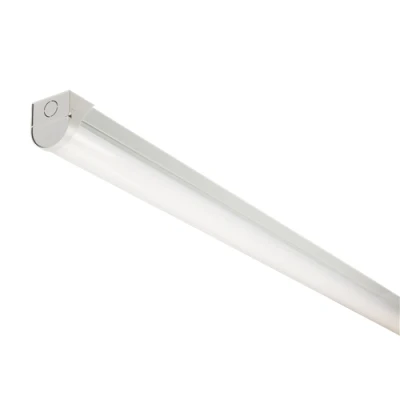

KnightsBridge 230V 5ft 40W DALI CCT Adjustable Self Test Emergency Batten

Electrical World

230V 5ft 40W DALI CCT Adjustable Self-Test Emergency BattenCCT adjustable LED batten range constructed from steel and polycarbonate, offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensures ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and Simple installation. CCT adjustable (3000K, 4000K, 5700K) DALI control gear for connection into simple room or networked building control system Self-test emergency for automatic function and duration tests High efficiency Rear and end conduit fixings Hinged gear tray Push-fit loop in-loop out connectors Simple one step installation Technical Specification:Length: 1525Width: 61Projection: 71Construction: Pressed steelFinish: WhiteClass: IIP Rating: IP20Primary Voltage: 230V 50HzMounting @@@3yYLIPl+gVTcNJucPSBAUoXuGwP+uUzb@@@: SurfaceDiffuser: OpalDriver: IncludedEmergency: Maintained / Non-maintained / SwitchedSelf-Test: YesAmbient Operating Temperature: -5~40Lamp Technology: LEDNo. of Lamps/LEDS: 224Energy Rating (Class) post 2021 SLR: DBeam Angle: 145CCT: 3000/4000/5700Light Colour: CCTLumens: 4960/5720/5410Lumens (Em. mode): 360Wattage: 40Actual Lumens (Light Source only): 6336.51Actual Lumens (Em. mode): 364.66Circuit Wattage: 40.15Efficacy: 157.82Actual CRI: 87.25SDCM Tolerance: 3.86Operating Current: 0.179PF (Power Factor): 0.971Driver Type: DALIMax. Output: 44.1Output Voltage: 25-42Output Current: up to 1050Power Factor: 0.9Isolation: SELVAmbient Temperature (Ta): 50Case Temperature (Tc): 90Dimensions: Length: 1525mmWeight: 2.02KgWarranty: 5 Years

Net Lighting

CCT adjustable LED batten range constructed from steel and polycarbonate, offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensures ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and simple installation. - CCT adjustable (3000K, 4000K, 5700K) - DALI control gear for connection into simple room or networked building control system - Self-test emergency for automatic function and duration tests - High efficiency - Rear and end conduit fixings - Hinged gear tray - Push-fit loop in-loop out connectors - Simple one step installation
