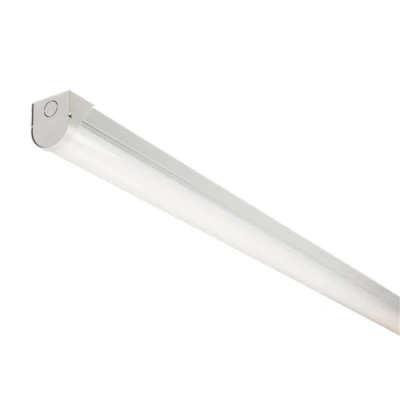

KnightsBridge 230V 6ft 27/52W CCT Adjustable Self Test Emergency Batten

Electrical World

230V 6ft 27/52W CCT Adjustable Self-Test Emergency BattenCCT and wattage adjustable LED batten range constructed from steel and polycarbonate, offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensures ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and Simple installation. CCT adjustable (3000K, 4000K, 5700K) Wattage adjustable (27/52W) 27W - 4,170lm at 4000K 52W - 7,520lm at 4000K Self-test emergency for automatic function and duration tests High efficiency Rear and end conduit fixings Hinged gear tray Push-fit loop in-loop out connectors Simple one step installation Technical Specification:Length: 1790Width: 61Projection: 71Construction: Pressed steelFinish: WhiteClass: IIP Rating: IP20Primary Voltage: 230V 50HzMounting Method: SurfaceDiffuser: OpalDriver: IncludedEmergency: Maintained / Non-maintained / SwiTchedSelf-Test: YesAmbient Operating Temperature: -5~50Lamp Technology: LEDNo. of Lamps/LEDS: 280Dimmable: NoEnergy Rating (Class) post 2021 SLR: DBeam Angle: 145CCT: 3000/4000/5700Light Colour: CCTLumens: 3750/4170/4070, 6590/7520/7150Lumens (Em. mode): 310Wattage: 27/52Actual Lumens (Light Source only): 8410.66Actual Lumens (Em. mode): 310.91Circuit Wattage: 50.82Efficacy: 165.5Actual CRI: 86.6SDCM Tolerance: 2.92Operating Current: 0.223PF (Power Factor): 0.987Driver Type: Constant CurrentMax. Output: 26/52Output Voltage: 30-43Output Current: 600/1200Power Factor: 0.95Isolation: SELVAmbient Temperature (Ta): -20~50Case Temperature (Tc): 75Dimensions: Length: 1790mmWeight: 2.27KgWarranty: 5 Years

Net Lighting

CCT and wattage adjustable LED batten range constructed from steel and polycarbonate, offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensures ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and simple installation. - CCT adjustable (3000K, 4000K, 5700K) - Wattage adjustable (27/52W) - 27W - 4,170lm at 4000K - 52W - 7,520lm at 4000K - Self-test emergency for automatic function and duration tests - High efficiency - Rear and end conduit fixings - Hinged gear tray - Push-fit loop in-loop out connectors - Simple one step installation
