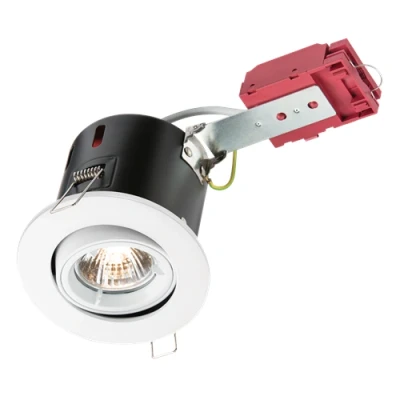

KnightsBridge 230V IP20 50W GU10 IC Fire Rated Tilt Downlight White

This fire-rated tilt downlight offers a blend of functionality and stylish design, making it an ideal choice for various lighting needs in residential and commercial settings. The product is designed with a white finish that seamlessly integrates into any decor while providing robust performance.

Product Overview

The Fire-Rated Tilt Downlight is a die-cast GU10 fixture, rated for 230V and accommodating a maximum lamp wattage of 50W. It features a twist-and-lock front ring, allowing for easy lamp replacement without the need for additional tools. This downlight is compatible with standard GU10 Halogen lamps and is particularly suited for retrofit LED and CFL lamps up to 60mm in length.

Compatibility and Installation

This downlight is IC (Insulation Compatible), meaning that it can be installed in insulated ceilings safely. It is equipped with an electrical termination system that includes a 10 Amp connector block housed within a secure enclosure, complete with a cord grip. The spring clip fixings are designed for easy installation, supporting a maximum ceiling thickness of up to 30mm. A recommended ceiling void of at least 120mm is needed for optimal performance.

<a class='cat-link' href='https://bigshopper.co.uk/brand/performance/'>Performance</a> and Compliance

The downlight is dimmable when used with compatible dimmable bulbs, adding flexibility to your lighting solutions. It has been rigorously tested and complies with the following standards:

- BS476 Part 21 & 23

- Building Regulations Part B (Fire Safety)

Moreover, it has been tested to achieve 30, 60, and 90 minutes of fire resistance with solid wood joists, making it a safe choice for various applications.

Technical Specifications

- Finish: White

- Material: Pressed Steel and Aluminium

- IP Rating: IP20

- Height: 8.4 cm

- Diameter: 10.1 cm

- Projection: 0.5 cm

- Number of Lights: 1

- Lamp Type: GU10

- Dimmable: Yes (with compatible bulbs)

- Maximum Wattage: 50W

- Bulb Included: No

- Weight: 0.395 kg

- Cut-out Diameter: 8.4 cm

- Recess Depth: 1.5 cm

- Tilt Angle: 15 degrees

This versatile downlight not only enhances the visual appeal of any space but also ensures safety and efficiency. Ideal for both new constructions and retrofitting in existing installations, it provides high-quality lighting solutions that are built to last.
