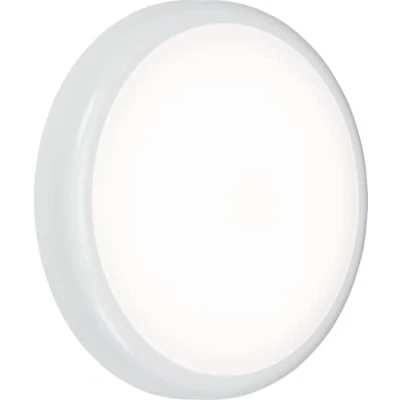

KnightsBridge 230V IP65 14W CCT LED Bulkhead with Corridor Function

The 230V IP65 14W CCT LED Bulkhead with Corridor Function Sensor is a versatile luminaire designed for both internal and external applications. With a focus on longevity and high luminous output, this wall and ceiling mountable LED fixture is ideal for a variety of settings, including offices, multiple occupancy areas, and commercial environments.

Key Features

- CCT Adjustable: The colour temperature can be easily adjusted to suit your needs, offering three options: 3000K (warm white), 4000K (cool white), and 5700K (daylight).

- Corridor Function: This innovative feature allows the light to remain at a preset dimmed level during periods of inactivity. Once the built-in sensor detects movement, the light output increases to 100% brightness for a specified time before returning to its dimmed state. This functionality enhances energy efficiency while ensuring spaces are adequately illuminated when needed.

- Easy Installation: The luminaire comes equipped with a hinged LED gear tray, allowing for straightforward access to internal components, and features a push-fit fast fix terminal block for quick installation.

- Durable Construction: Constructed from high-quality polycarbonate, this fixture is designed to withstand the rigours of both indoor and outdoor environments. Its IP65 rating ensures protection against dust ingress and water jets, making it suitable for various weather conditions.

- High Output Diffuser: The opal diffuser enhances light distribution, providing a more uniform illumination while maintaining glare reduction.

Performance Specifications

This LED bulkhead luminaire delivers impressive lumen outputs depending on the selected colour temperature:

- 3000K: 1085 lumens

- 4000K: 1285 lumens

- 5700K: 1130 lumens

Overall, it produces a light source efficacy of 137.3 lumens per watt, making it an energy-efficient lighting solution.

Additional Information

- Dimensions: The bulkhead has a diameter of 315mm and a projection of 74mm, ensuring a low-profile design suitable for various applications.

- Weight: Weighing just 1kg, it is lightweight yet robust, facilitating easy handling during installation.

- Driver Type: It uses a constant current driver for stable performance and reliability.

- Lifetime: With an L70B50 rating of 60,000 hours, this LED luminaire is built to last, reducing the need for frequent replacements.

This 230V IP65 14W CCT LED Bulkhead with Corridor Function Sensor represents a perfect blend of functionality, durability, and energy efficiency, making it an excellent choice for a wide range of commercial and residential lighting applications.
