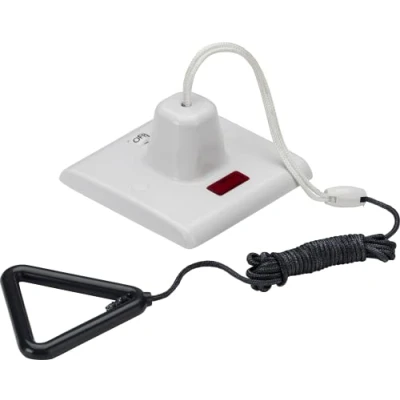

KnightsBridge 50A DP pull cord switch [Part M Compliant]

The Knightsbridge 50A Double Pole Pull Cord Switch is a high-quality electrical accessory designed to comply with the current Building Regulations Part M, making it an ideal choice for both domestic and commercial applications. This robust switch is particularly beneficial in settings where traditional wall switches cannot be installed, ensuring accessibility for all users.

Design and Construction

This pull cord switch is constructed from thermoset resin, providing durability and resistance to wear. The white finish not only fits seamlessly into various environments but also adheres to the guidelines recommending a visual contrast to the wall. The switch features a minimum 50mm diameter grey triangular bangle, designed to be easily distinguishable from the background and any emergency assistance pull cords, ensuring both safety and compliance.

Technical Specifications

- Voltage: 230V 50Hz

- Load/Max Load: 50A

- Switch Type: Double Pole

- Dimensions: Length: 85mm, Width: 85mm, Projection: 44mm

- Weight: 0.151kg

- IP Rating: IP20

- Terminal Capacity: 2 x 6.0mm² or 3 x 4.0mm²

- Neon Indicator: Yes

- Construction: Thermoset resin

- Warranty: 25 years

Compliance and Safety

The Knightsbridge pull cord switch has been certified to all relevant British Safety standards, ensuring it meets the rigorous demands of both safety and performance. It has been UKCA certified and features inherent anti-microbial properties that have been third-party tested, adding an extra layer of hygiene—ideal for use in various environments.

User-Friendly Features

The product is equipped with a mechanical ON/OFF indicator and a neon indicator, making its operation clear and straightforward. The pull cord is a generous 2 meters in length, allowing for ease of use even in larger spaces. The design facilitates installation at a recommended height between 900mm and 1100mm above floor level, making it highly accessible for users with diverse needs.

Accessibility Considerations

The Knightsbridge pull cord switch promotes inclusivity by conforming to accessibility regulations. It is recommended that its installation ensures visual contrast against both the front plate and the wall surface, adhering to guidance that calls for a Light Reflectance Value (LRV) contrast of at least 30%. With an approximate LRV of 8.9, this switch meets this requirement, providing a safer and more functional solution.

Overall, the Knightsbridge 50A Double Pole Pull Cord Switch combines practicality, safety, and compliance, making it an excellent addition to any installation where accessibility is paramount.
