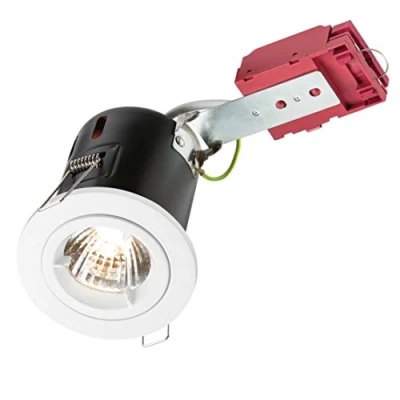

KnightsBridge GU10 50W 230V LED Compatible IC Fire Rated Fixed Downlight White

The Knightsbridge GU10 Fixed Insulation Compatible Fire Rated Downlight is a modern lighting fixture designed to blend elegance with functionality. This IP20-rated downlight is crafted from robust pressed steel, making it suitable for various applications, whether in residential or commercial settings.

Design and Features

This fire-rated downlight features a sleek white finish that complements a range of interior designs. Its overall dimensions measure 87mm in diameter and 8.4cm in height, with a projection of just 0.5cm, ensuring a low-profile fit for ceilings. The twist and lock front ring allows for easy lamp replacement, streamlining maintenance and ensuring convenience.

Compatibility

The downlight is compatible with all standard GU10 halogen bulbs, as well as retrofit LED and CFL lamps up to 60mm in length. This versatility in lamp choices allows users to select energy-efficient options without compromising on brightness or style.

- Lamp Type: GU10

- Wattage (max): 50W

- Dimmable: Yes, when using dimmable bulbs

- Bulb Included: No

Technical Specifications

Proper installation is crucial for optimal performance. The Knightsbridge downlight requires a ceiling void of at least 120mm and has a maximum ceiling thickness of 30mm. The cut-out size for installation is 72mm, allowing for a secure fit within your ceilings. Electrical connections are made through a 10 Amp connector block housed in a secure enclosure with a cord grip for added safety.

- Weight: 0.315kg

- Recess Depth: 1.5cm

- IP Rating: IP20

Safety and Compliance

This downlight is designed with safety in mind and meets stringent building regulations. It is compliant with BS476 Part 21 and 23 testing standards and satisfies the requirements of Building Regulations Part B regarding fire safety. The downlight has been tested to withstand fire for durations of 30, 60, and 90 minutes, making it a reliable choice for new builds and renovations alike.

In the event of a fire, the fitting's vent holes will be sealed by expanding intumescent material, preventing the spread of flames and smoke. This feature adds an extra layer of safety, allowing for peace of mind in any installation.

Conclusion

The Knightsbridge GU10 Fixed Insulation Compatible Fire Rated Downlight merges functionality with sophistication, making it an essential addition to your lighting solutions. With its easy installation process, compatibility with various bulb types, and rigorous safety standards, this downlight is perfectly designed for modern living spaces. Upgrade your lighting today with confidence and style.
