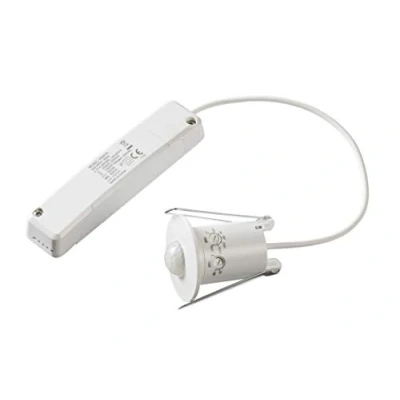

KnightsBridge IP20 Mini 360 PIR Sensor with Power Module Recess Mounting

Electrical World

Mini professional PIR ceiling sensor with power module. - IP20 rated for indoor use only - Recess fitting - Cut out: 38mm - Separate power module for easy installation - 360° field of detection - 8m range - Adjustable Lux - Adjustable time: 30 seconds to 30 minutes - Can be wired in parallel - Switching capacity: Max. 2000W Incandescent / Max. 200W LED - Certified to EN 60669-2-1, EN 60669-1, EN 55015, EN 61547, EN 61000Technical Specification:Diameter (mm): 52Recessed Depth (mm): 55Cut-out Diameter: 38Construction: PolycarbonateFinish: WhiteClass: IIIP Rating: IP20Primary Voltage: 230V 50HzWeight: 0.173KgWarranty: 1 Year

Amazon

This mini recessed PIR sensor is ideal for controlling Lights where motion is detected Diameter – 52 Height – 67. 5 Recess Depth - 55 IP20 rated for indoor use only Recess fitting with a 38mm Cut out Separate power module for easy installation 360° field of detection with an 8m range Adjustable lux and adjustable time: 30 seconds to 30 minutes Switching capacity: max. 2000W incandescent/ max. 200W LED Certified to EN 60669-2-1, EN 60669-1, EN 55015, EN 61547, EN 61000
